Tanks

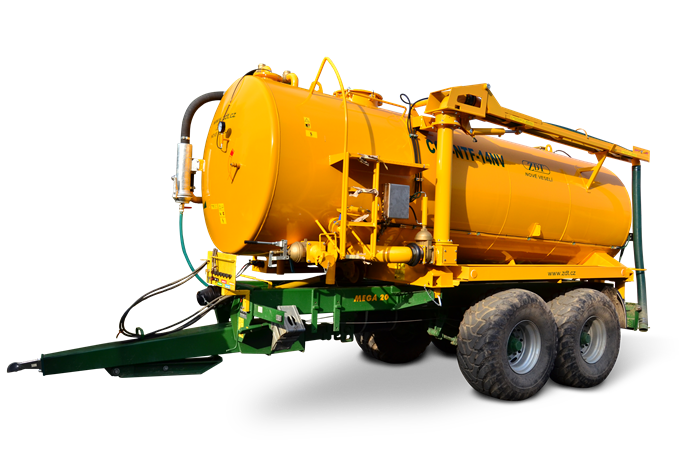

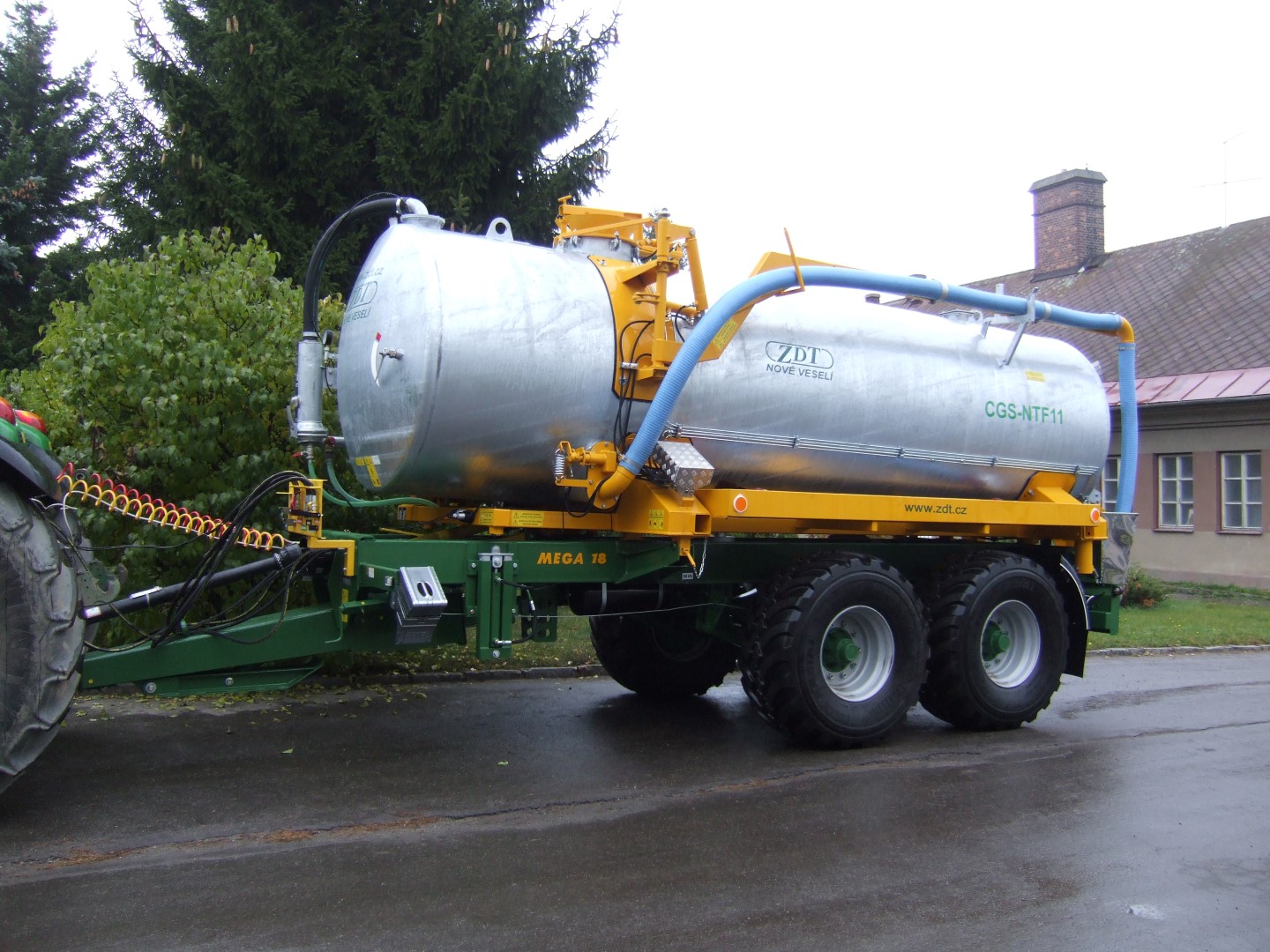

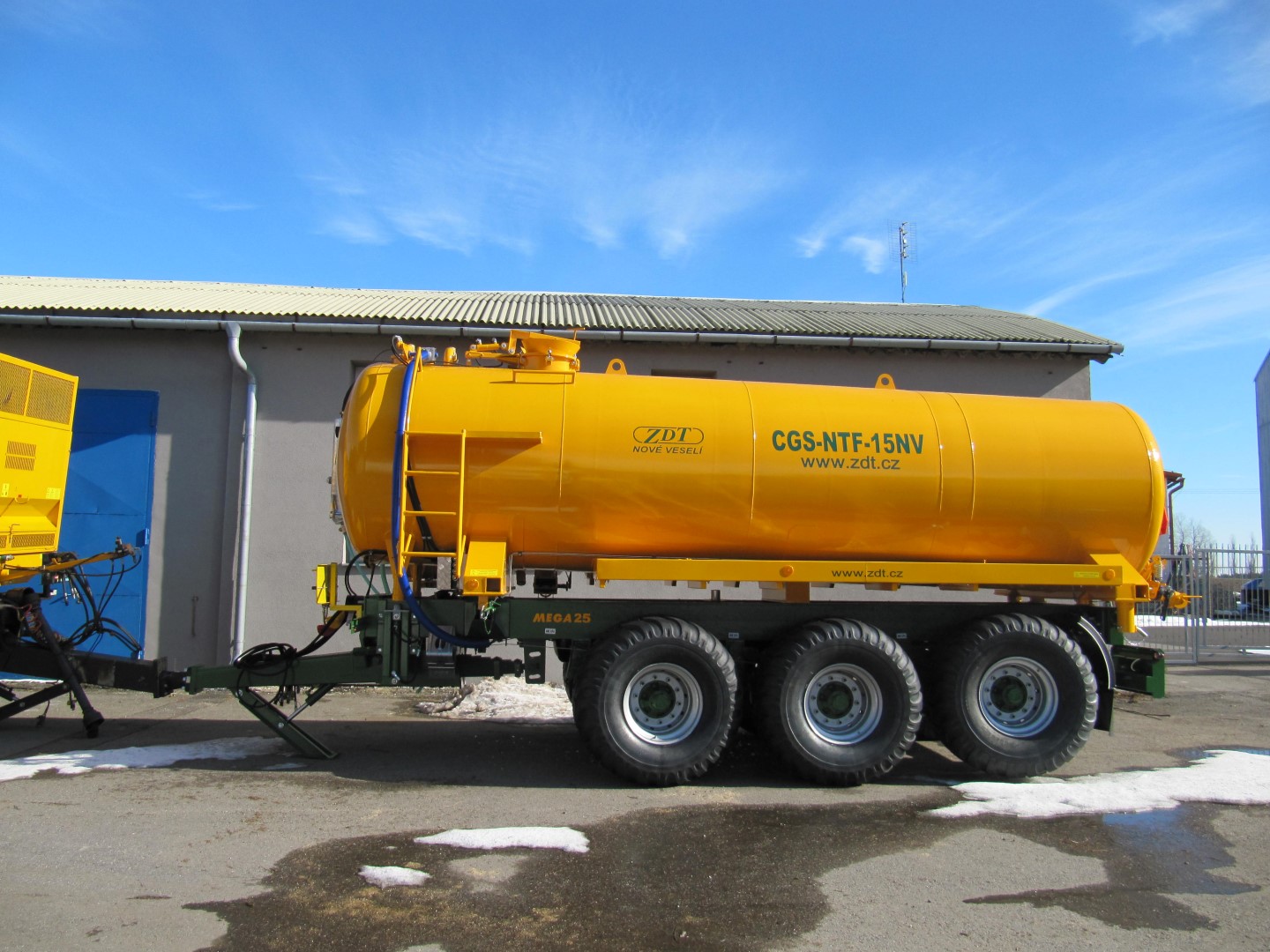

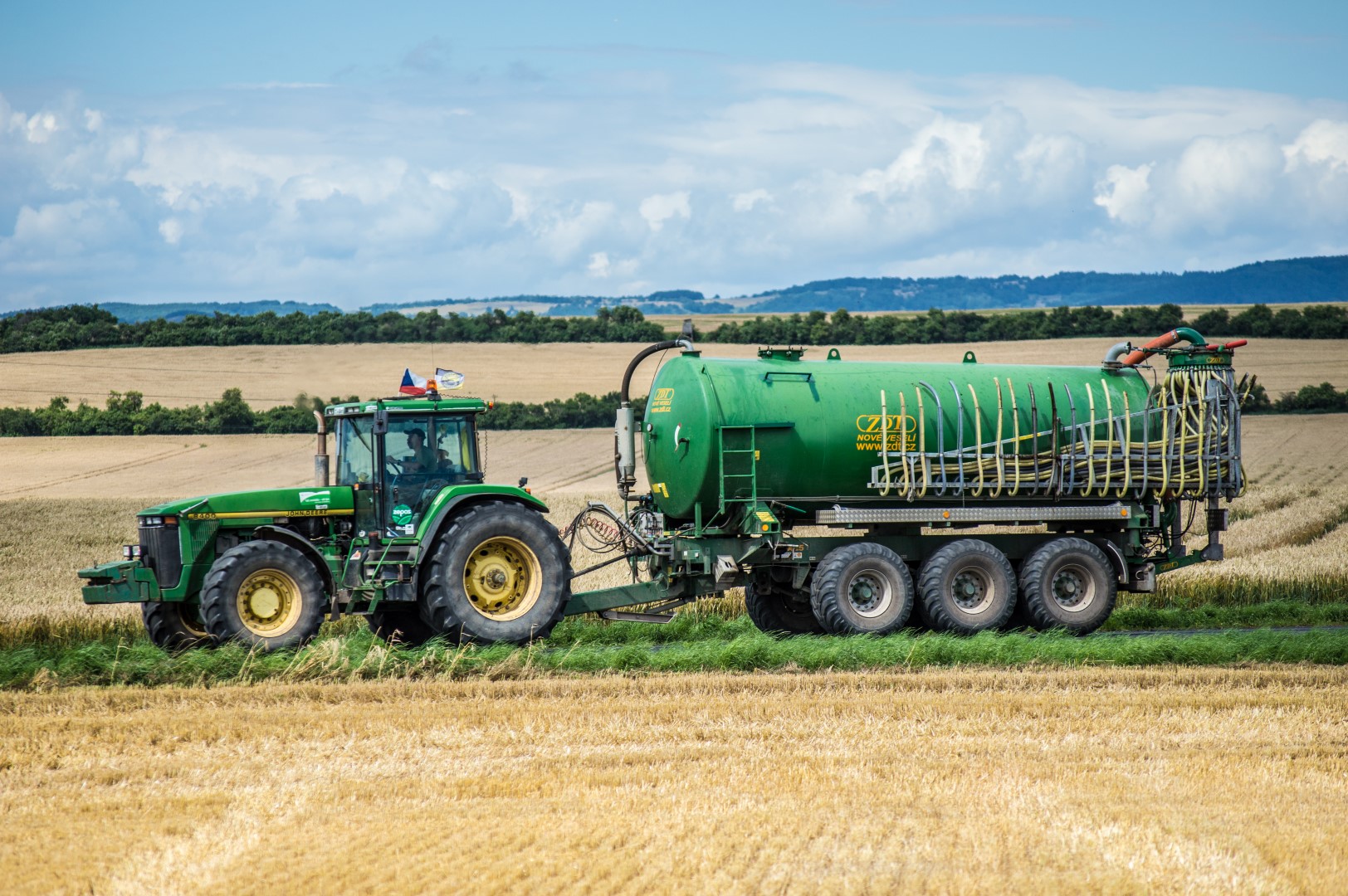

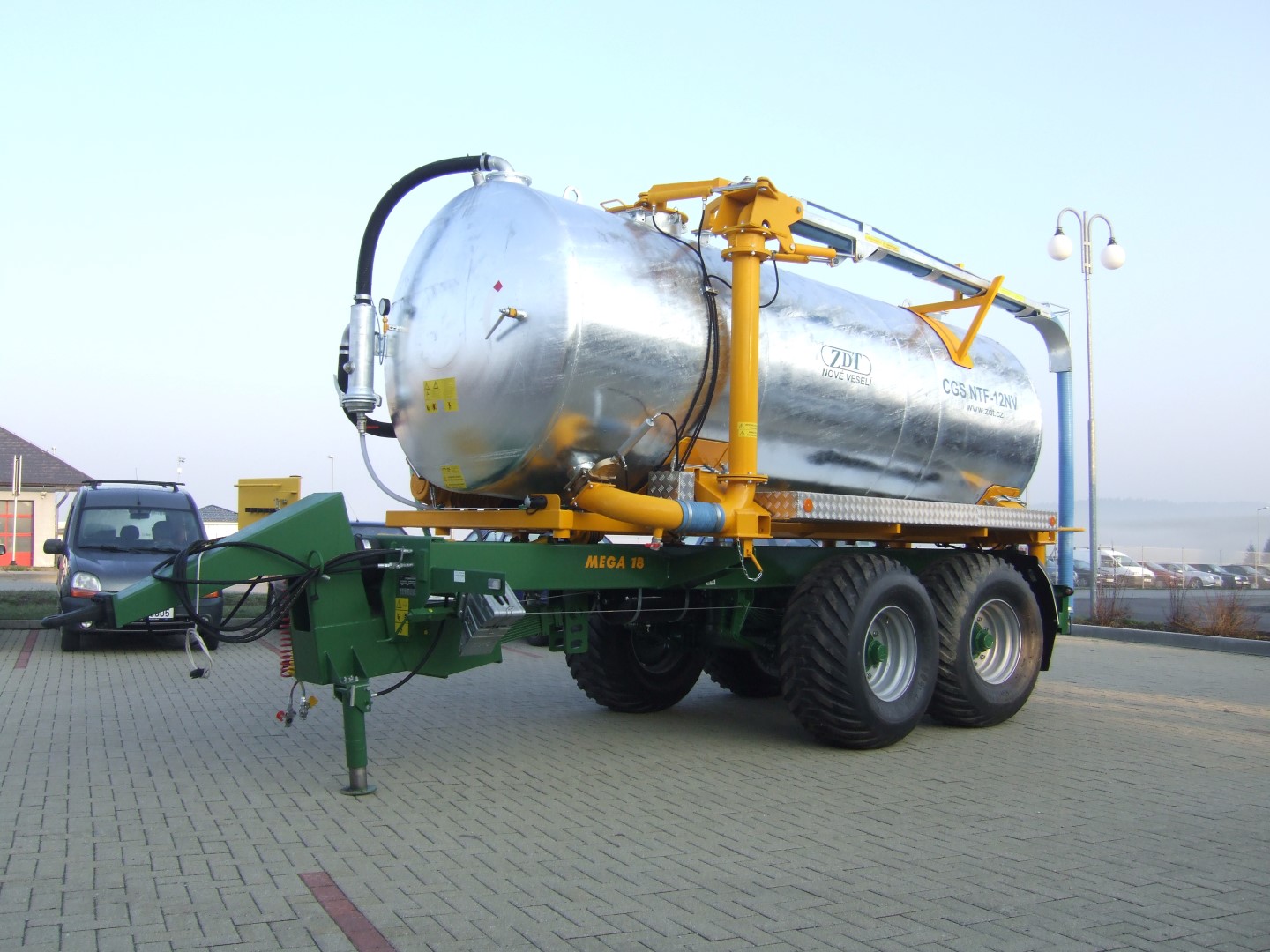

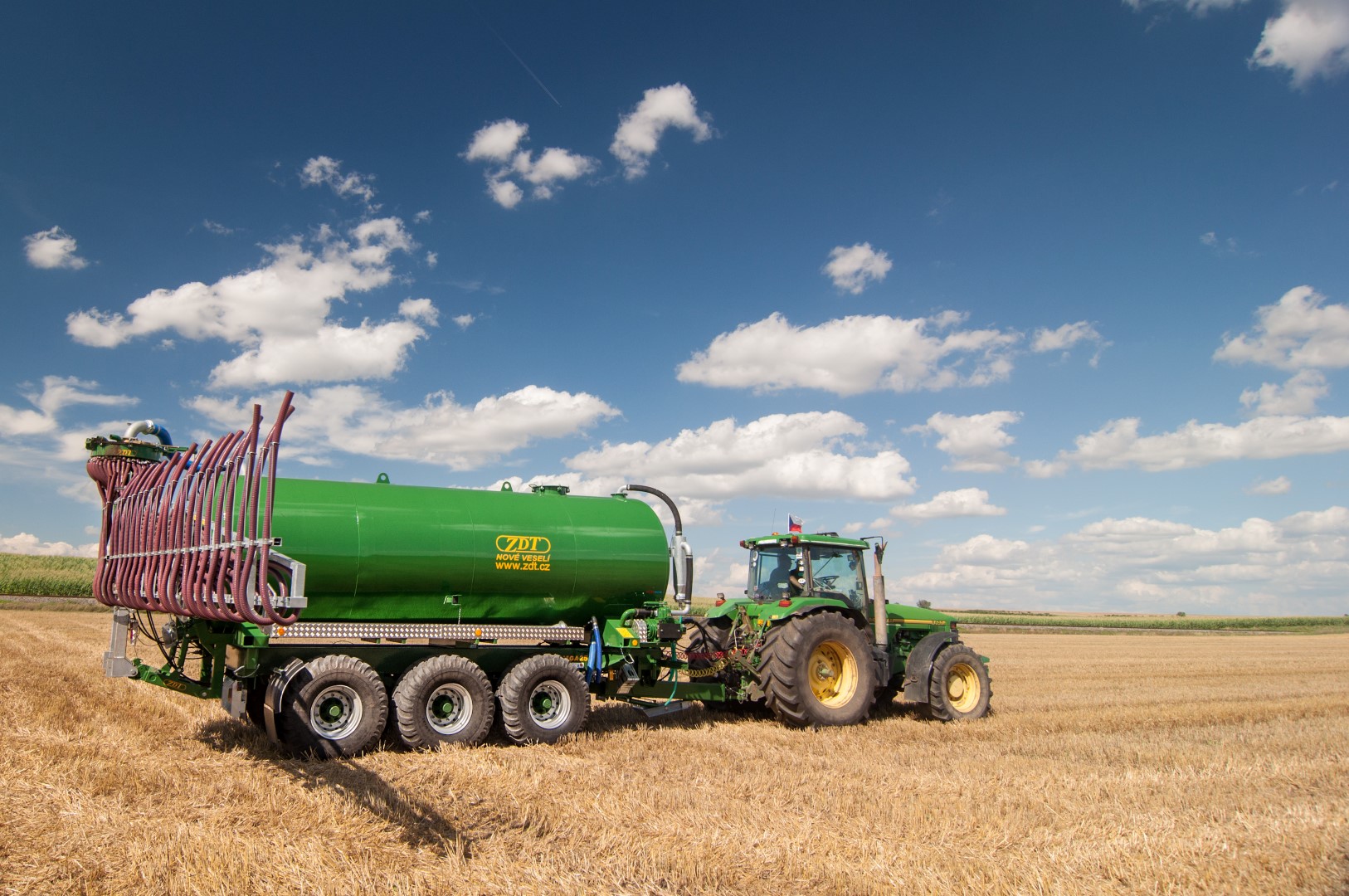

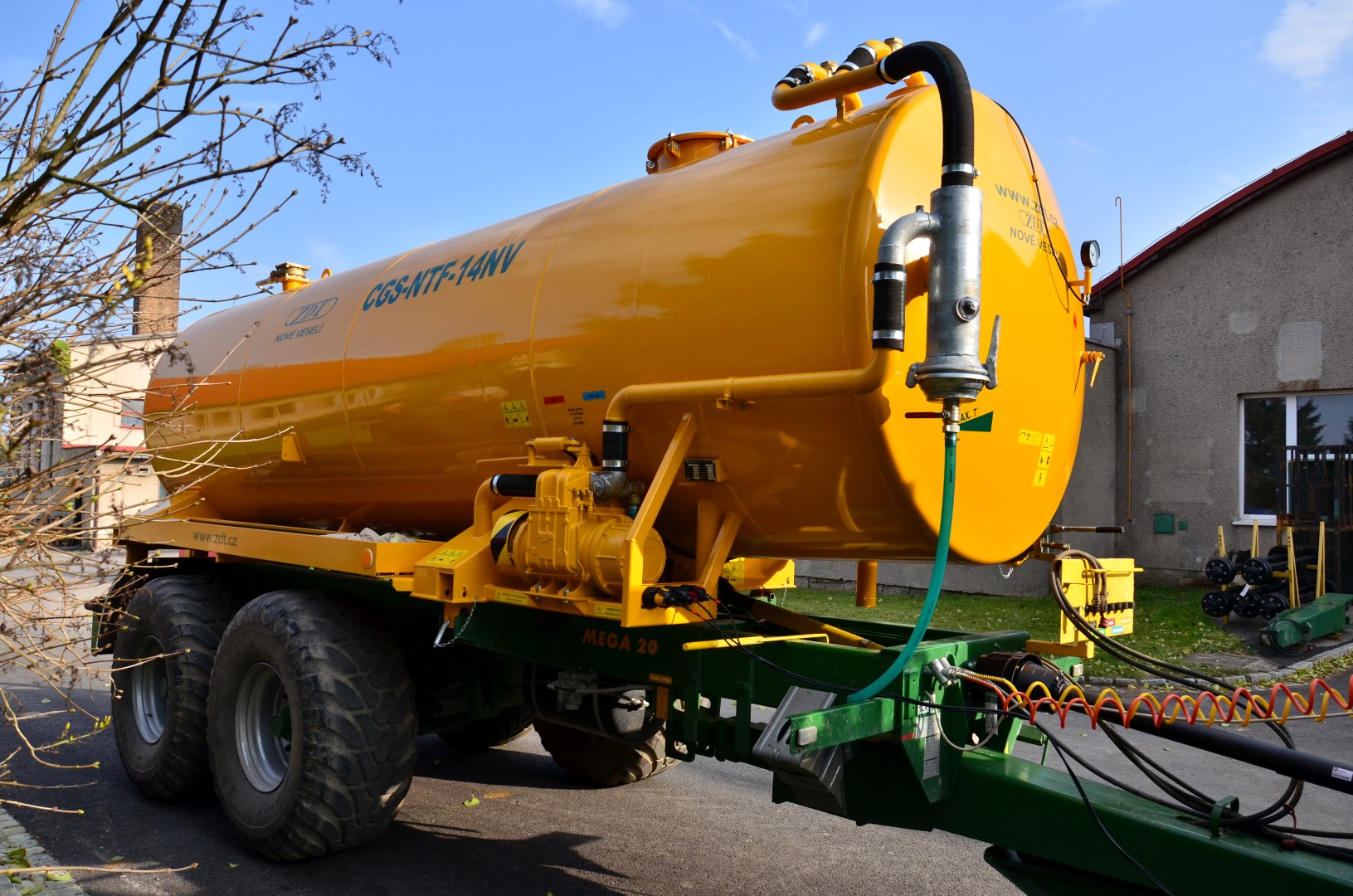

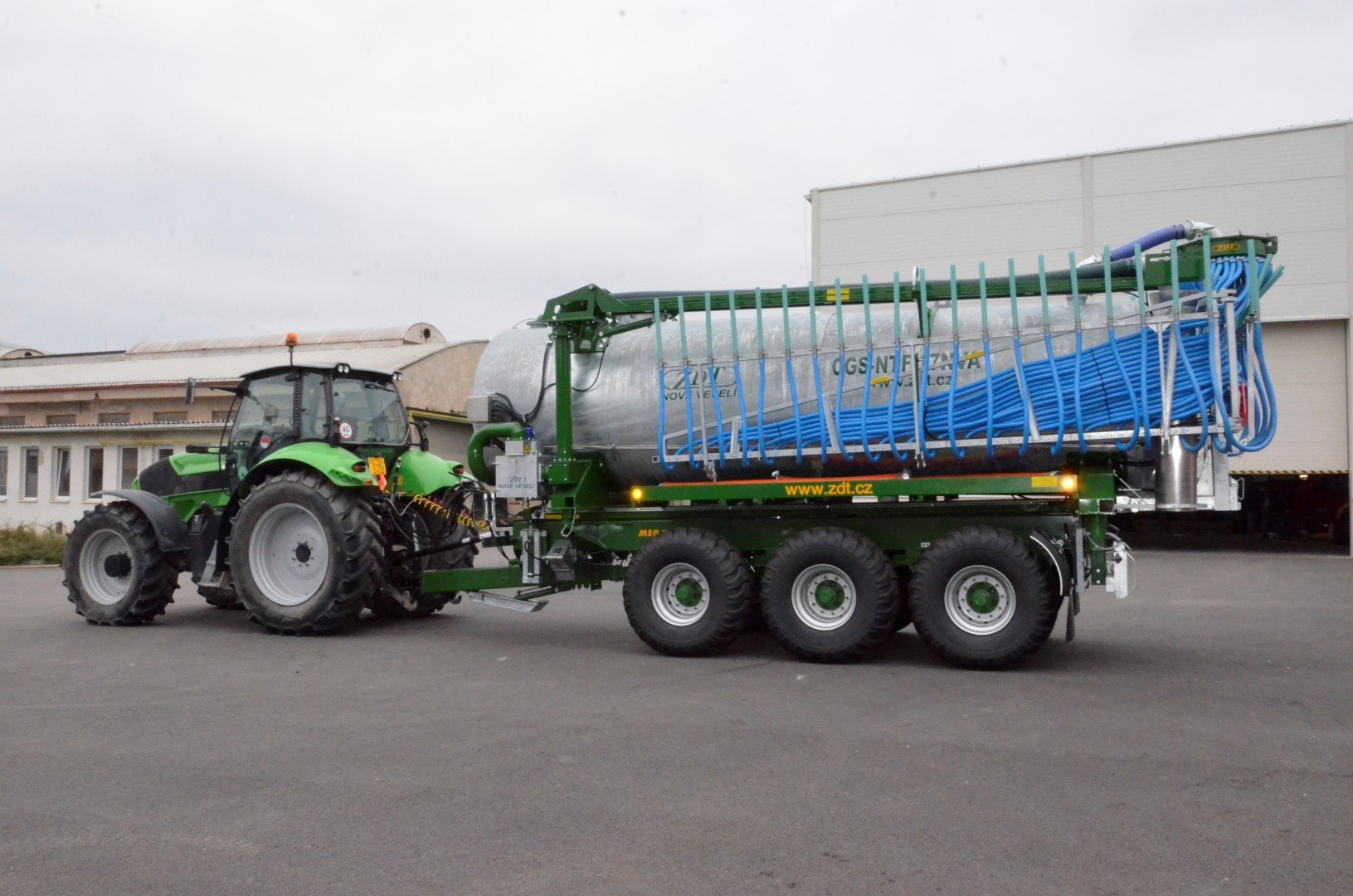

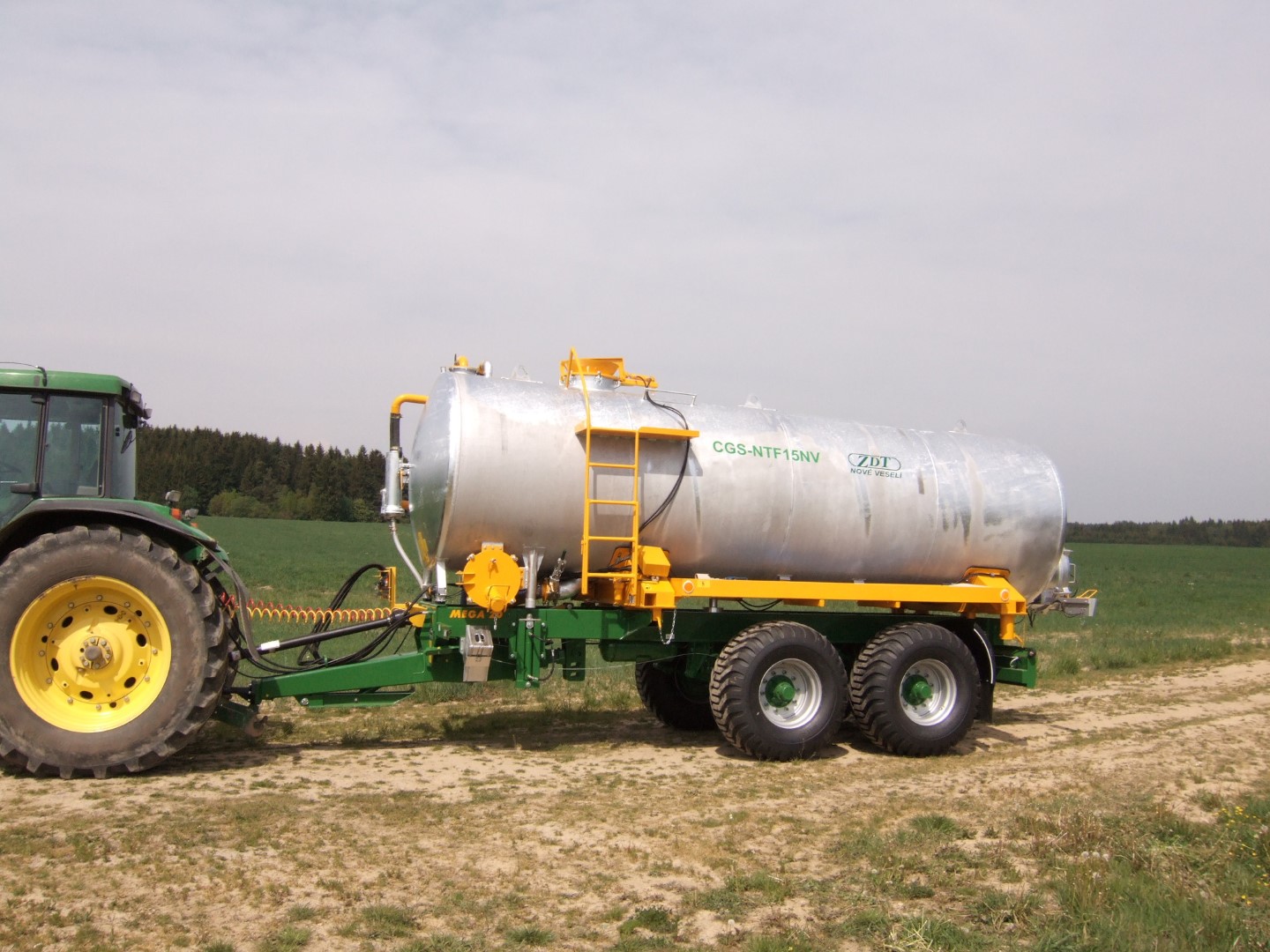

For MEGA and GRAND SUPER interchangeable systems, we offer tanks in a wide range of sizes from 8 to 22 m3. They can be designed for transportation, i.e. simple tanks with large volume and basic equipment to bring the slurry to the field; or for application, i.e. equipped with an applicator, suction arm and other necessary equipment.

First-class treatment

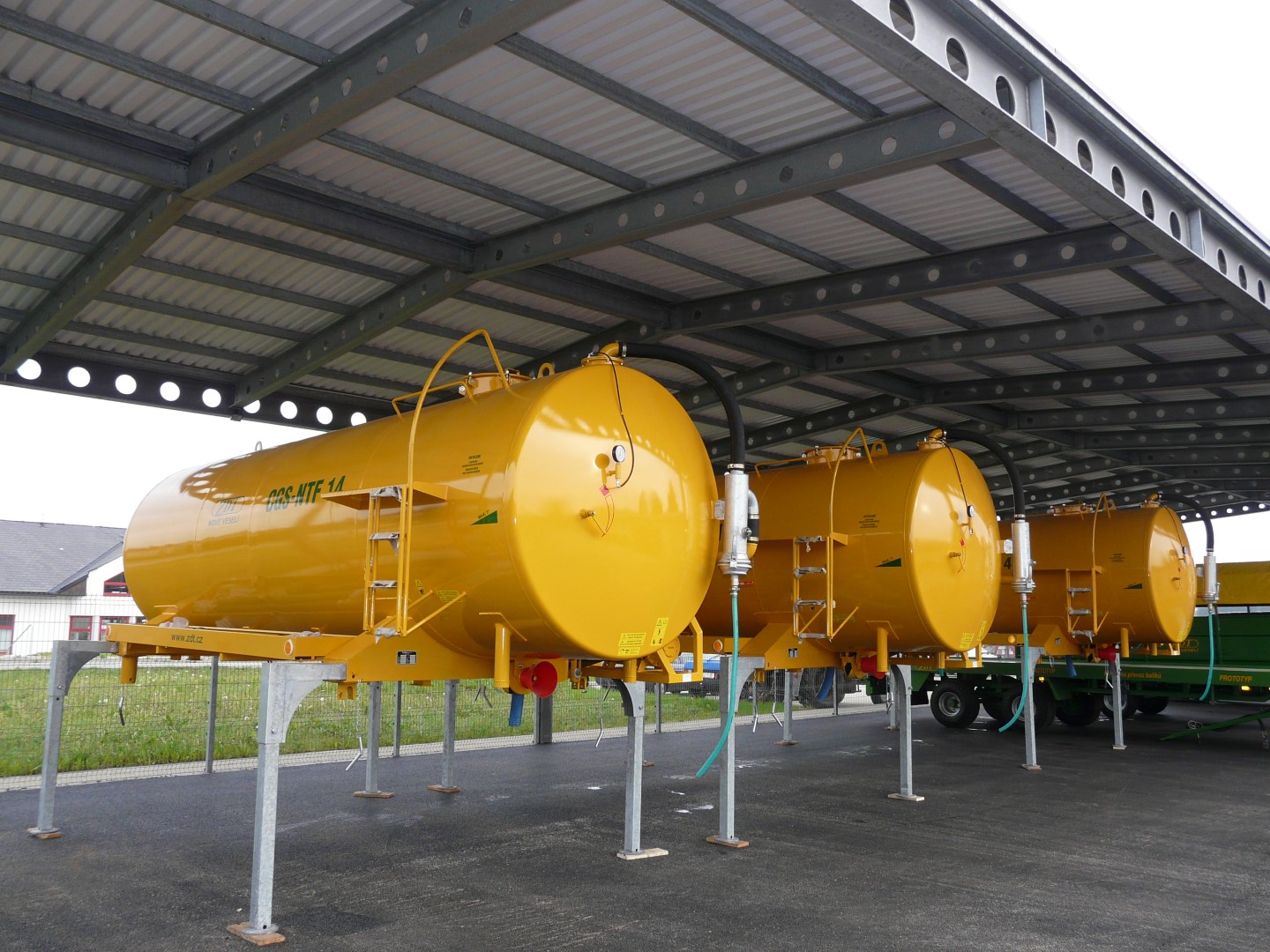

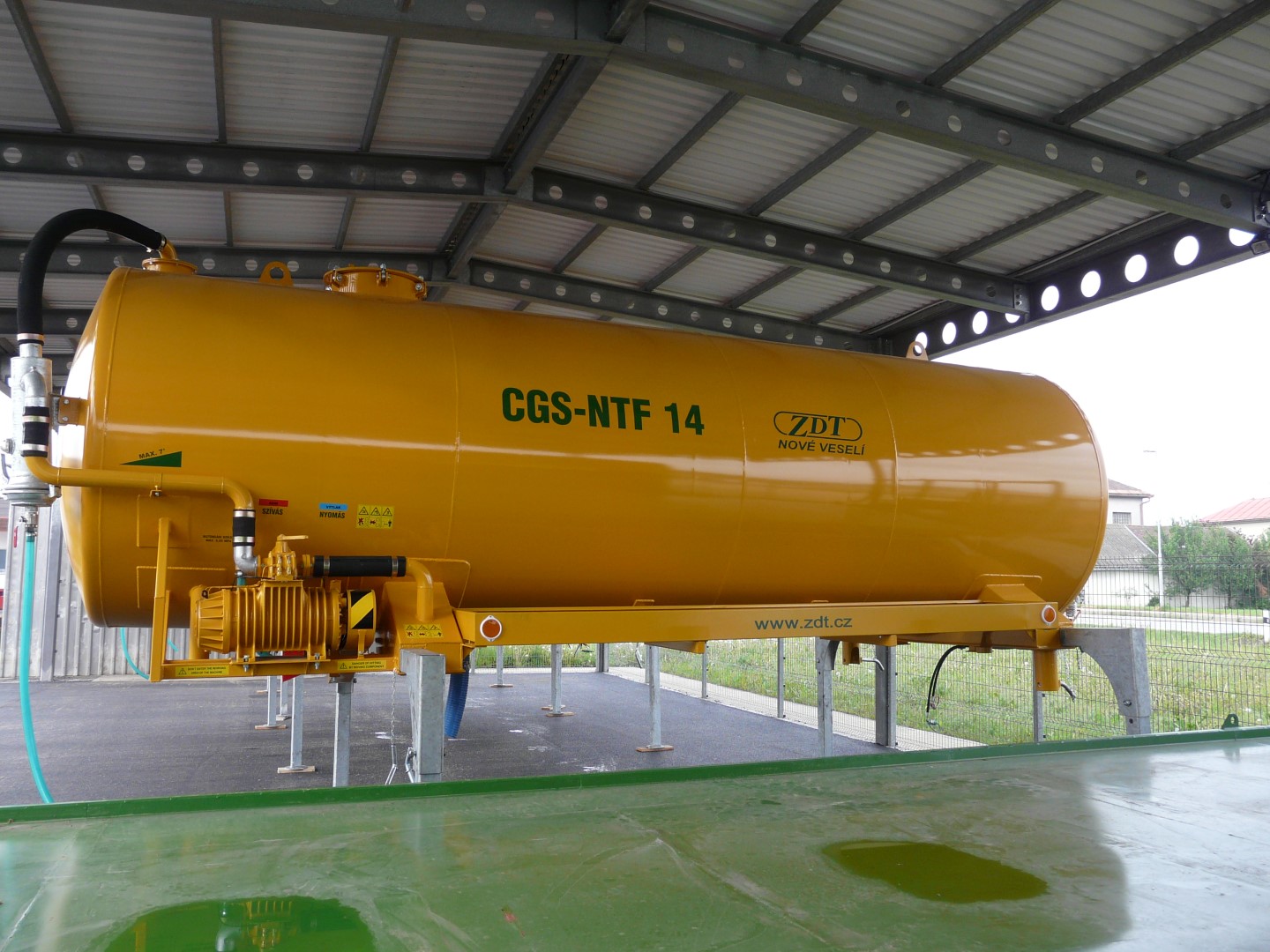

Part of interchangeable system

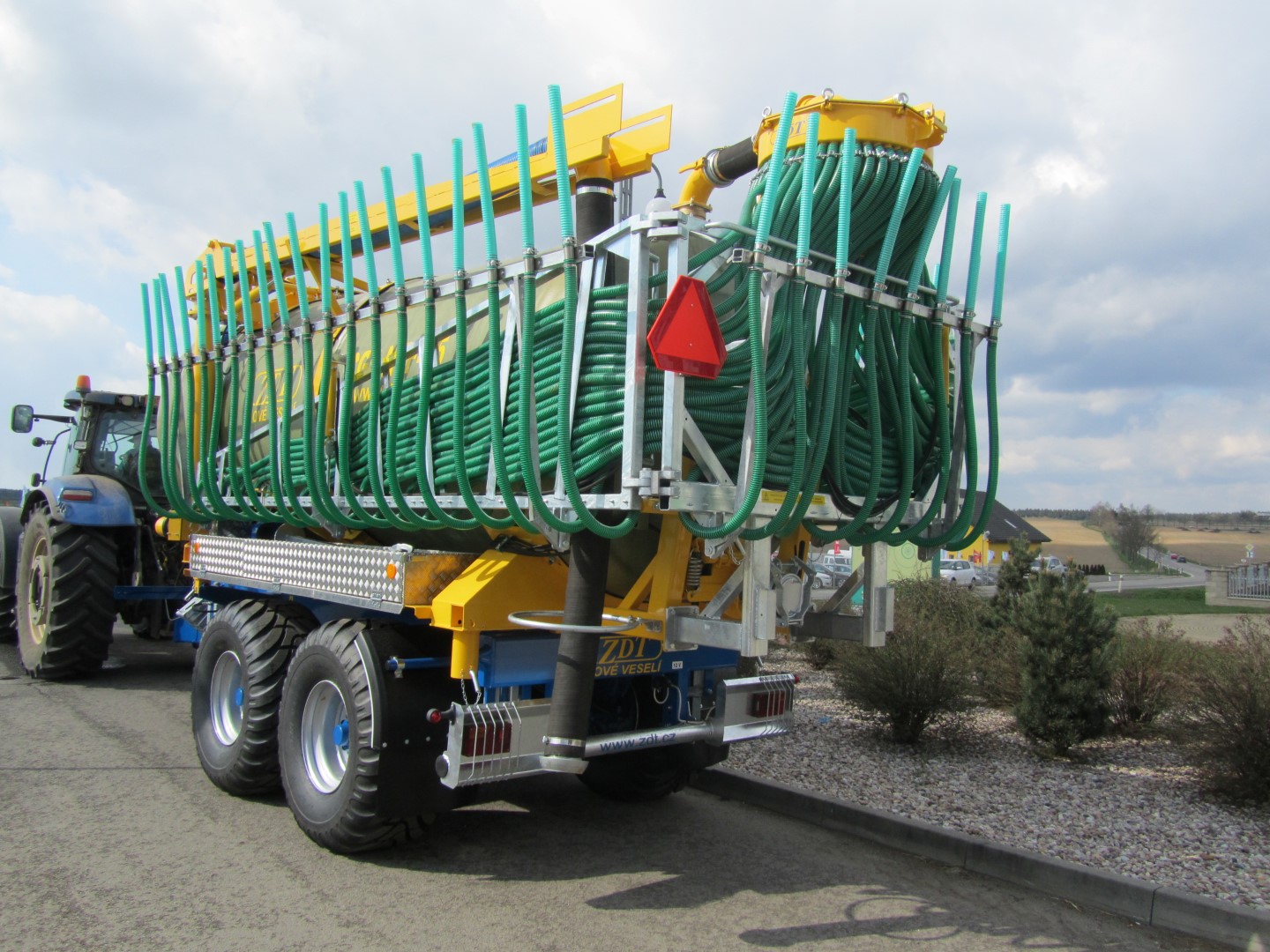

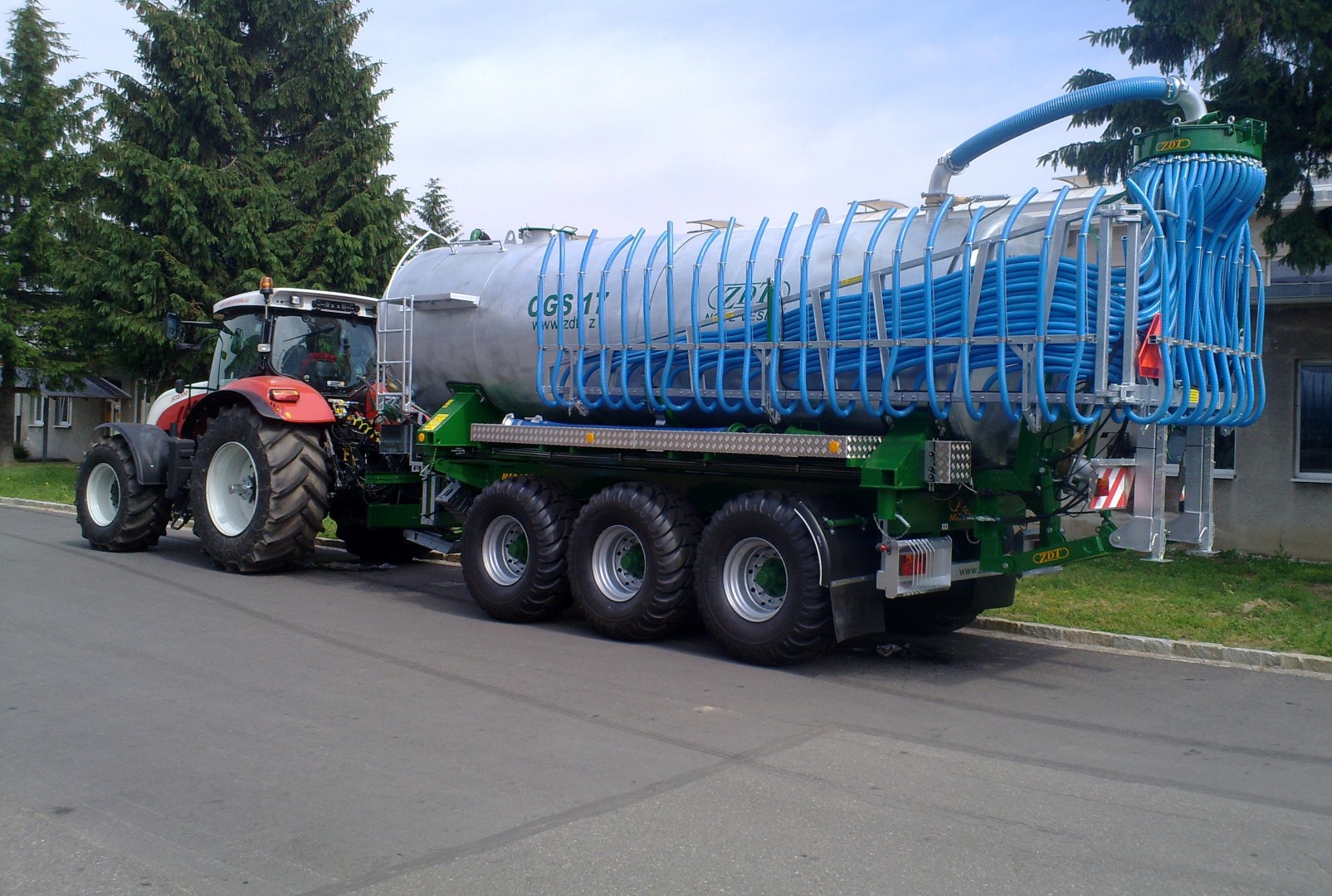

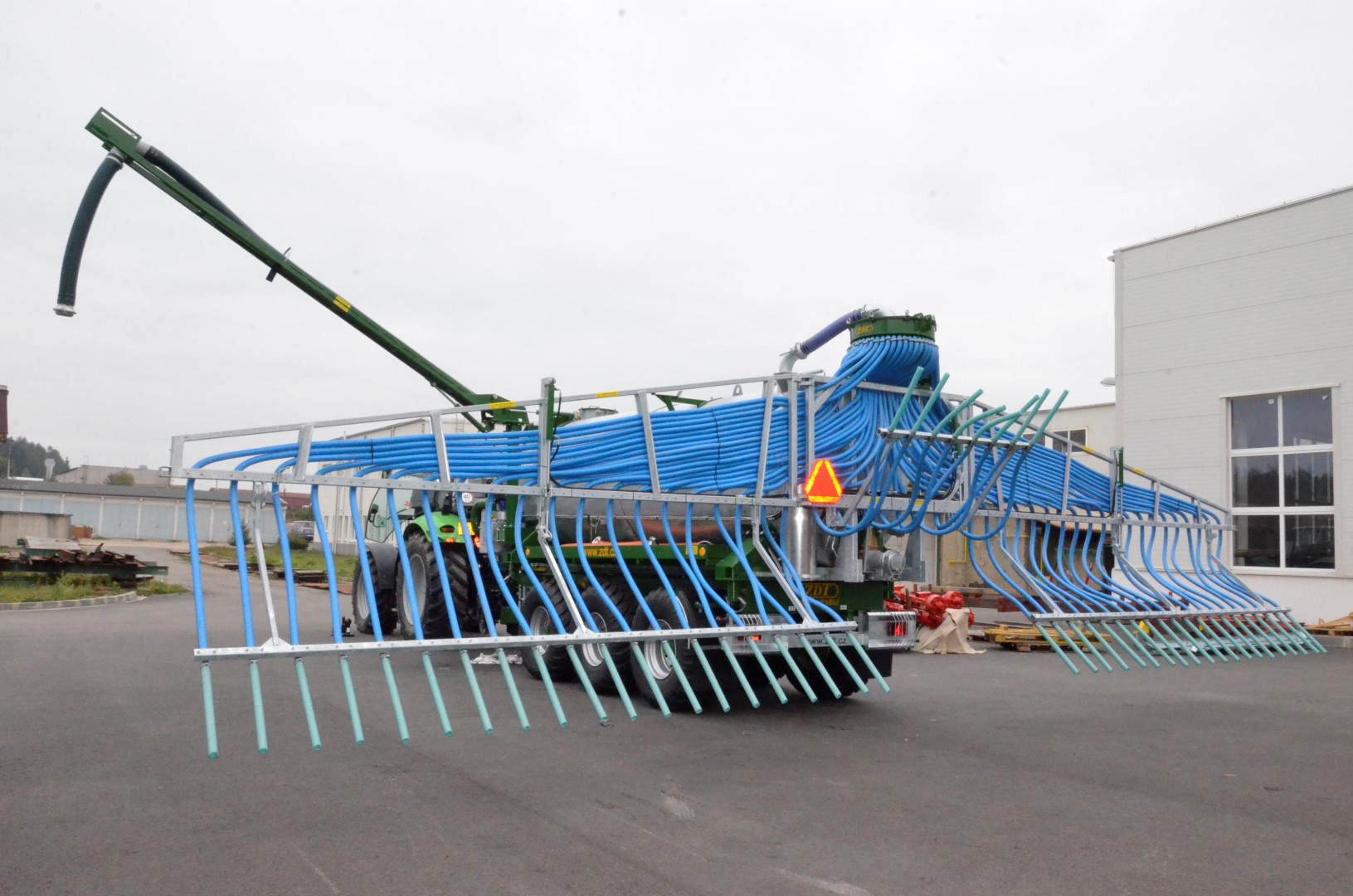

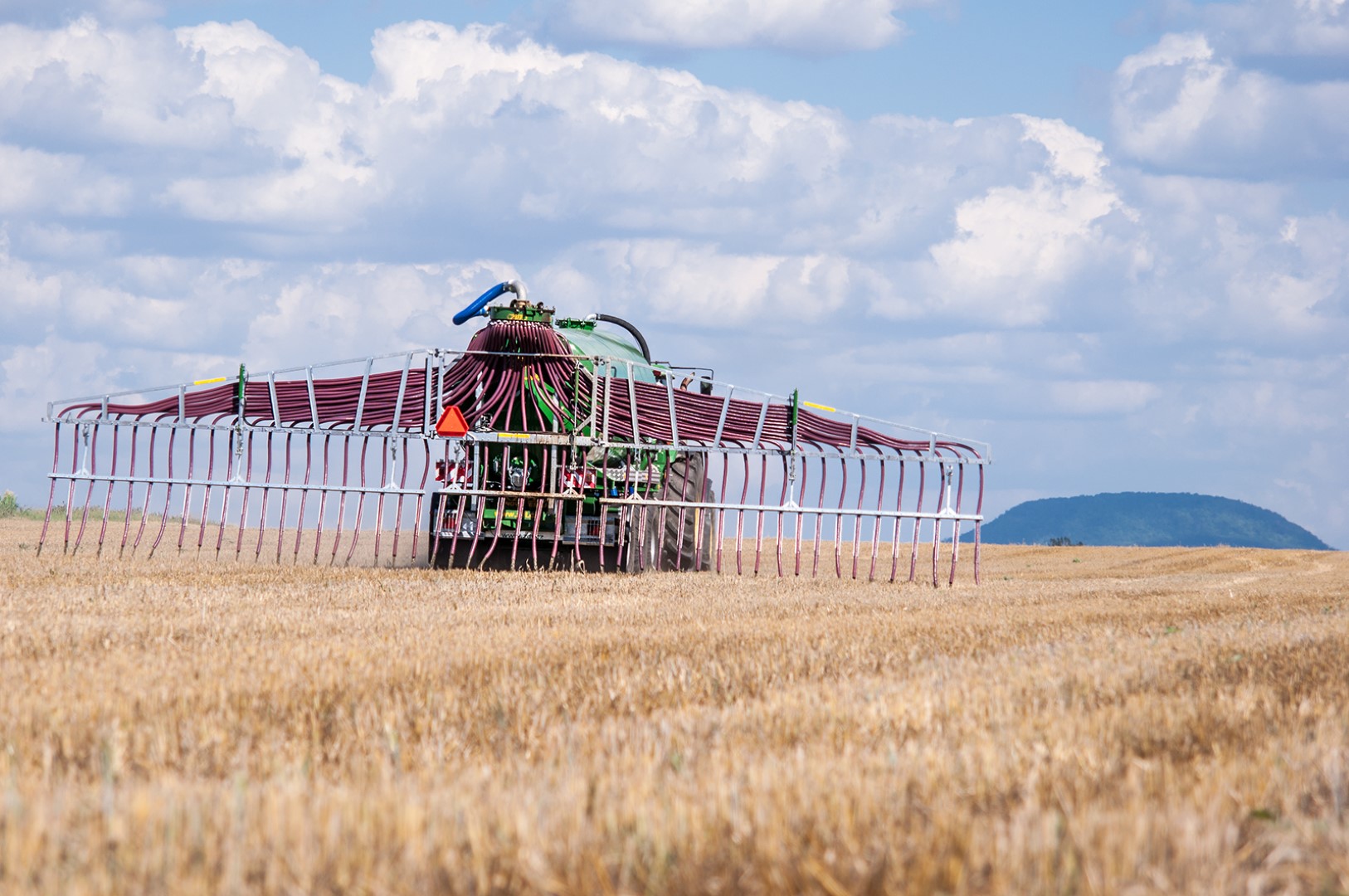

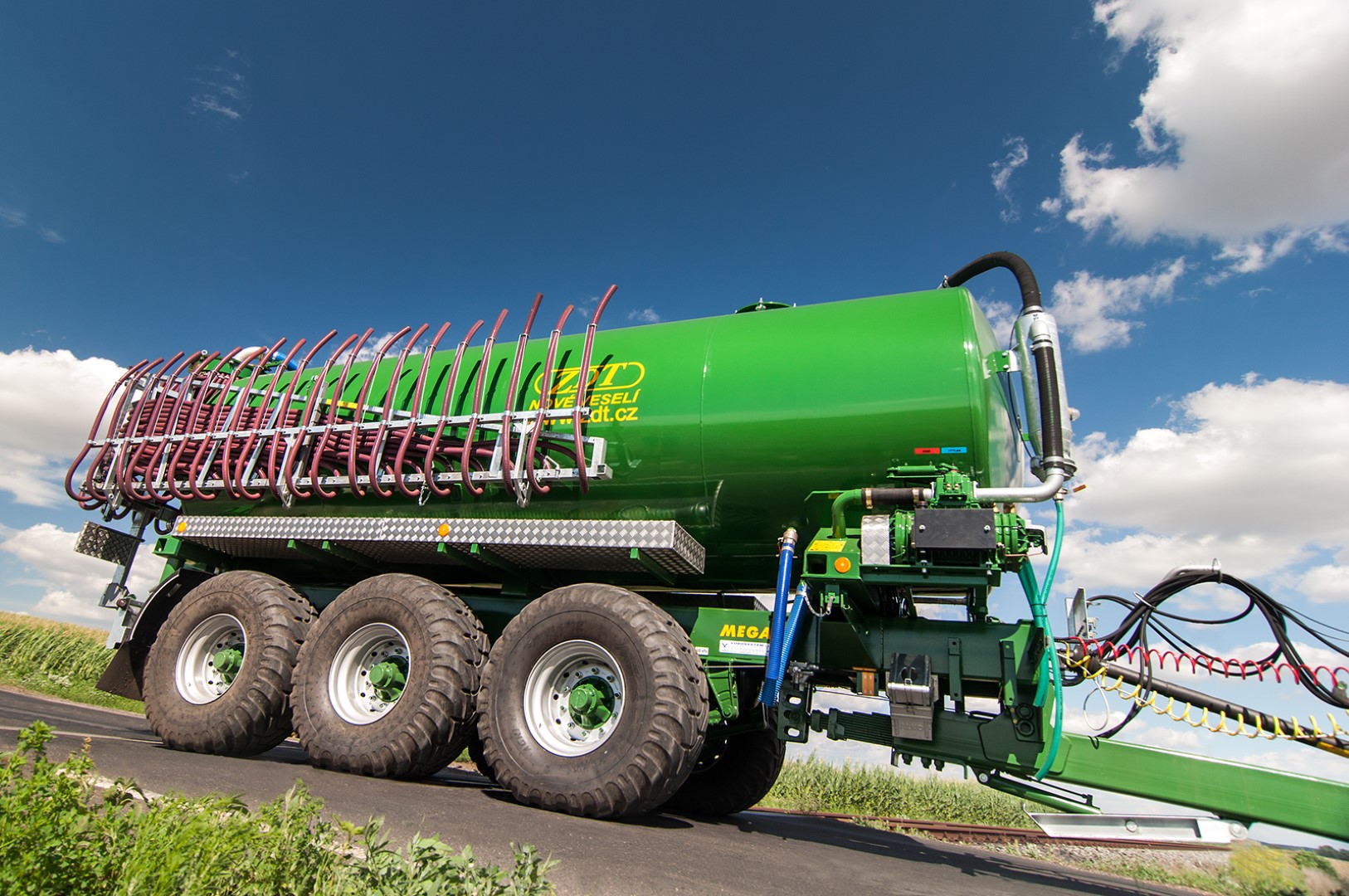

Many types of applicators

Different sizes

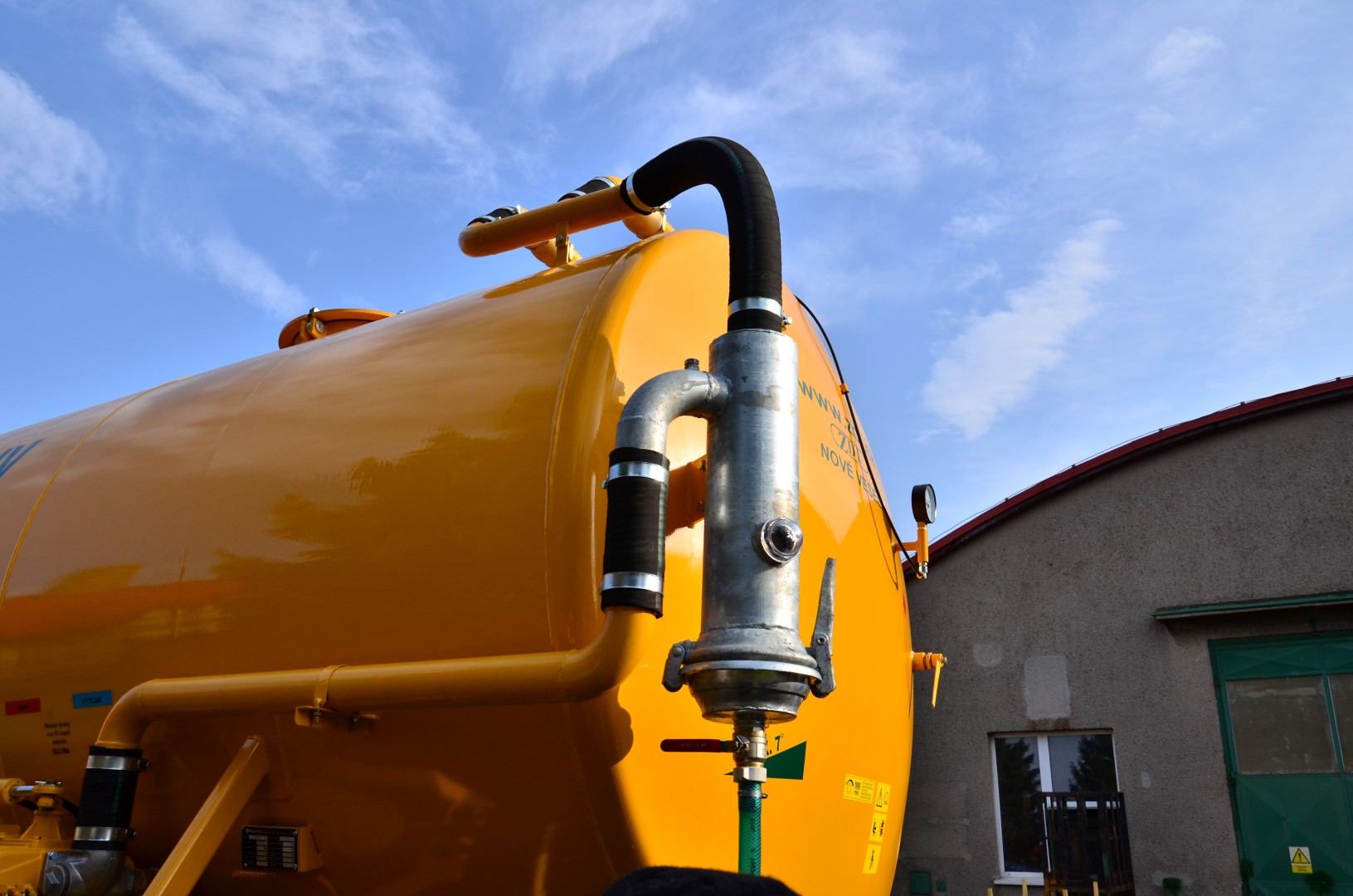

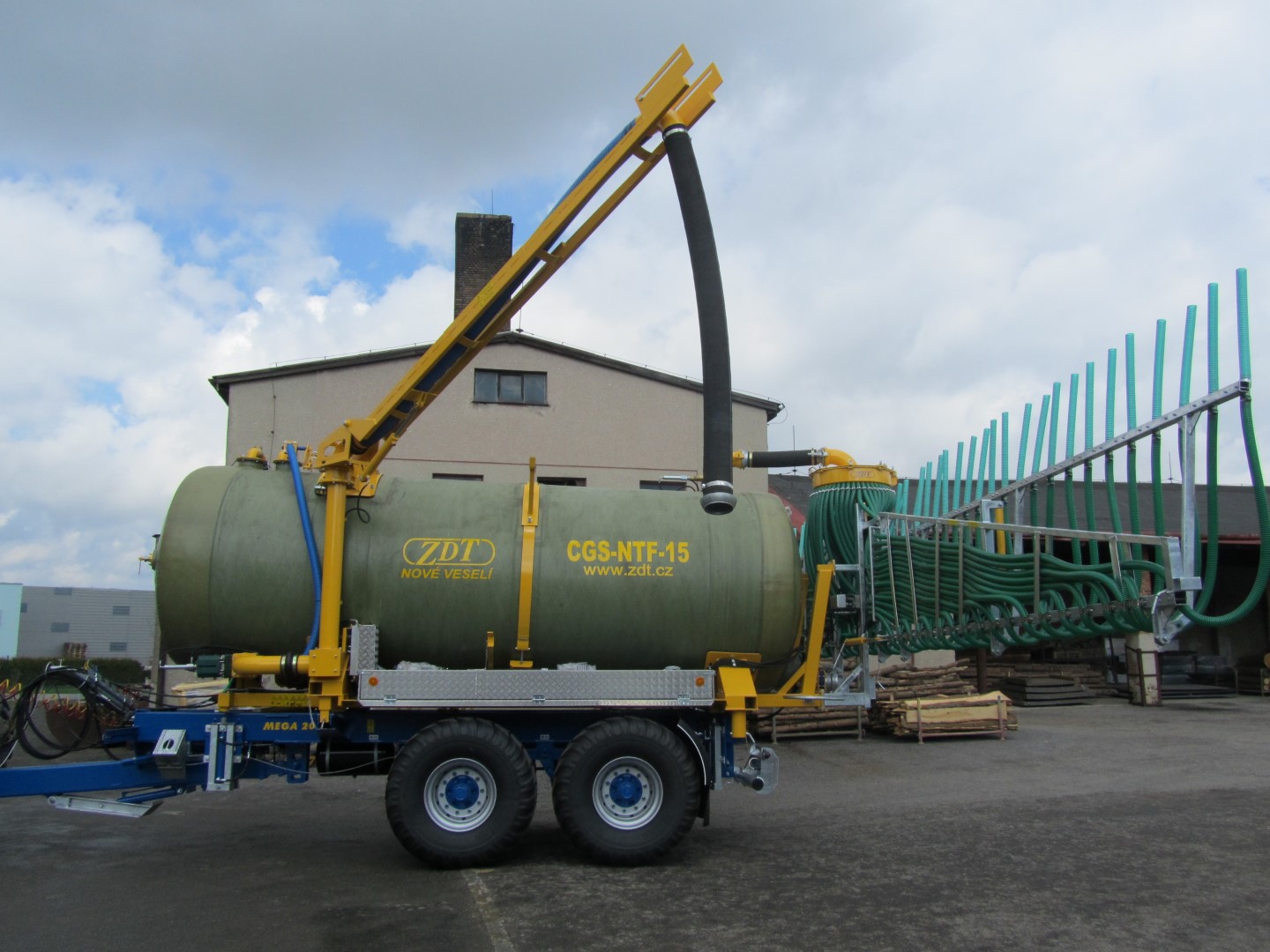

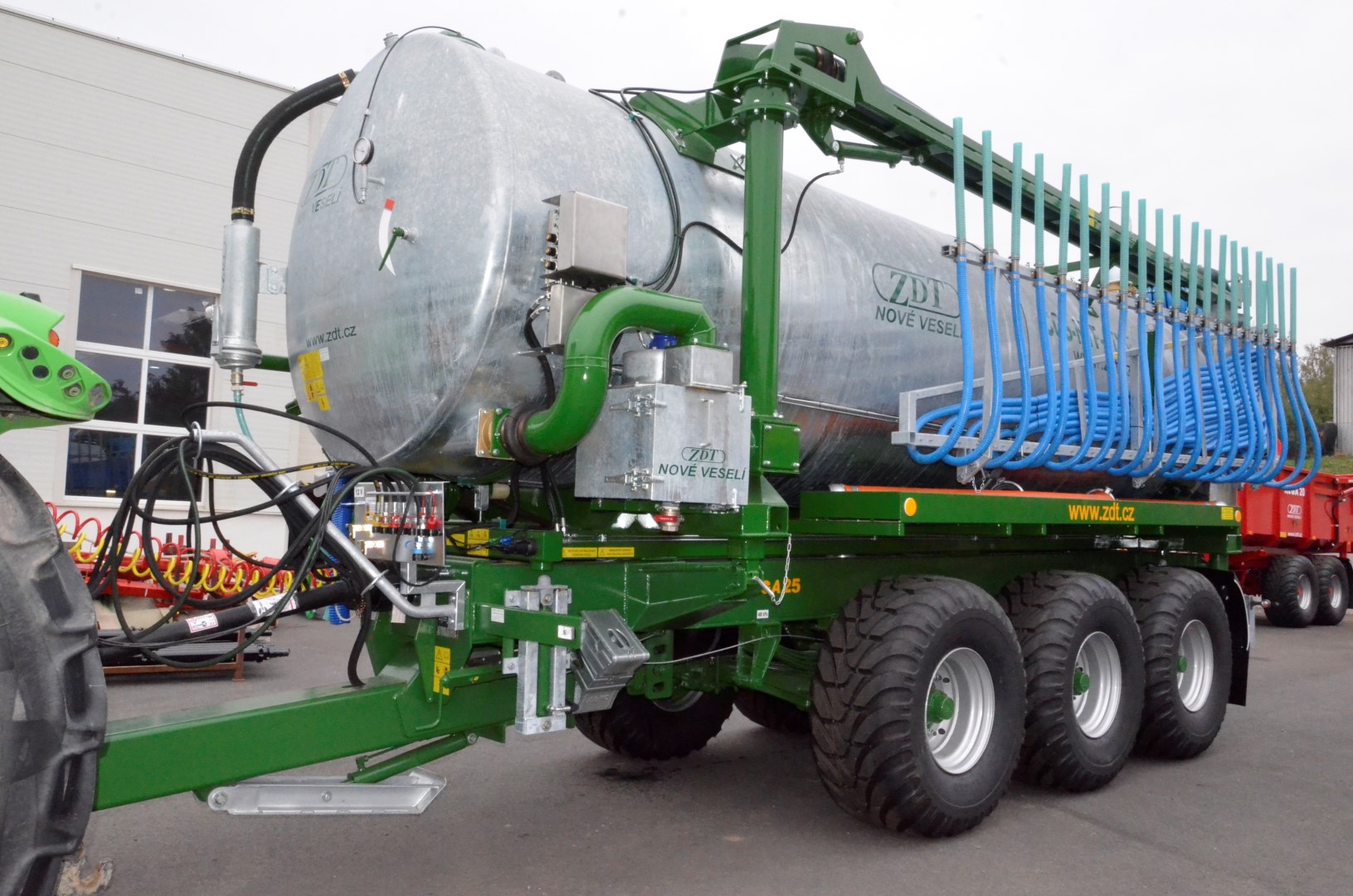

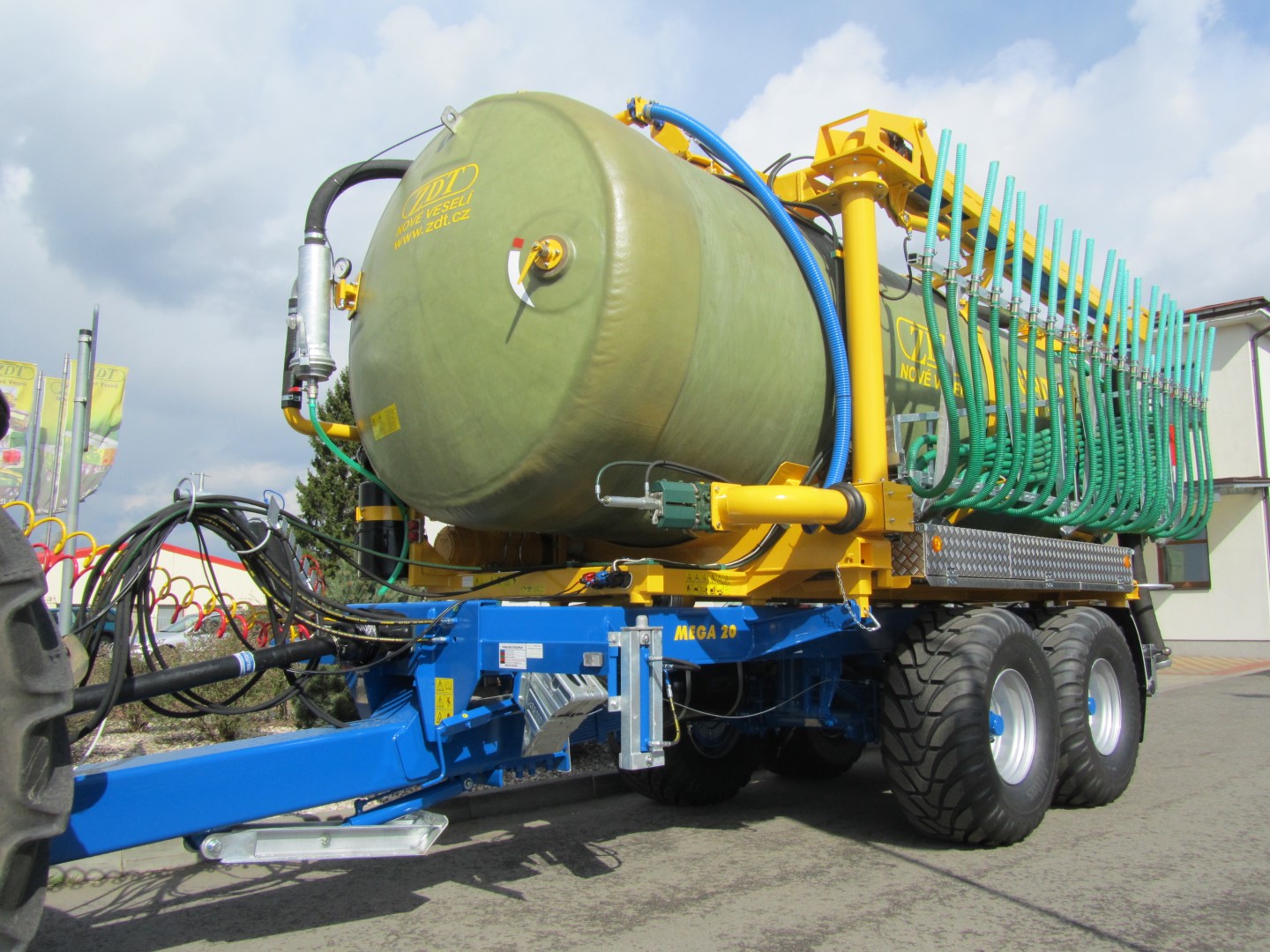

The choice of the material of the tank mainly depends on the transported substance. Tanks are equipped with breakwaters and also with a powerful vacuum compressor. Moreover, they can be equipped with a wide range of accessories such as a hydraulic suction arm, cutting head, hydraulic outlet control, stainless steel components, pump and a wide range of applicators.

The basic sizes of the tanks and their compatibility are listed below:

Name	Volume of tank m3	Vacuum compressor (l/min)	Compatible with
NTF 8	8	6 500	GS, MEGA13
NTF 11	11	9 000	MEGA18
NTF 12	12	9 000	MEGA18, 20
NTF 13	13	11 000	MEGA20
NTF 14	14	12 200	MEGA20
NTF 15	15	12 200	MEGA20, 25
NTF 17	17	12 200	MEGA25
NTF 22	22	15 000	MEGA33

Bc. Tomáš Michal

+420 608 705 702 tomas.michal%at%zdt.cz

Cisterna

Objem [m3]

Vakuokompresor [l/min]

GRAND SUPER

9000

MEGA18

10,11,12

11000/12200

MEGA20

12,14,15

11000/12200

MEGA25

12200

MEGA33 hydr.

15000

MEGA33 mech.

15000

Basic equipment

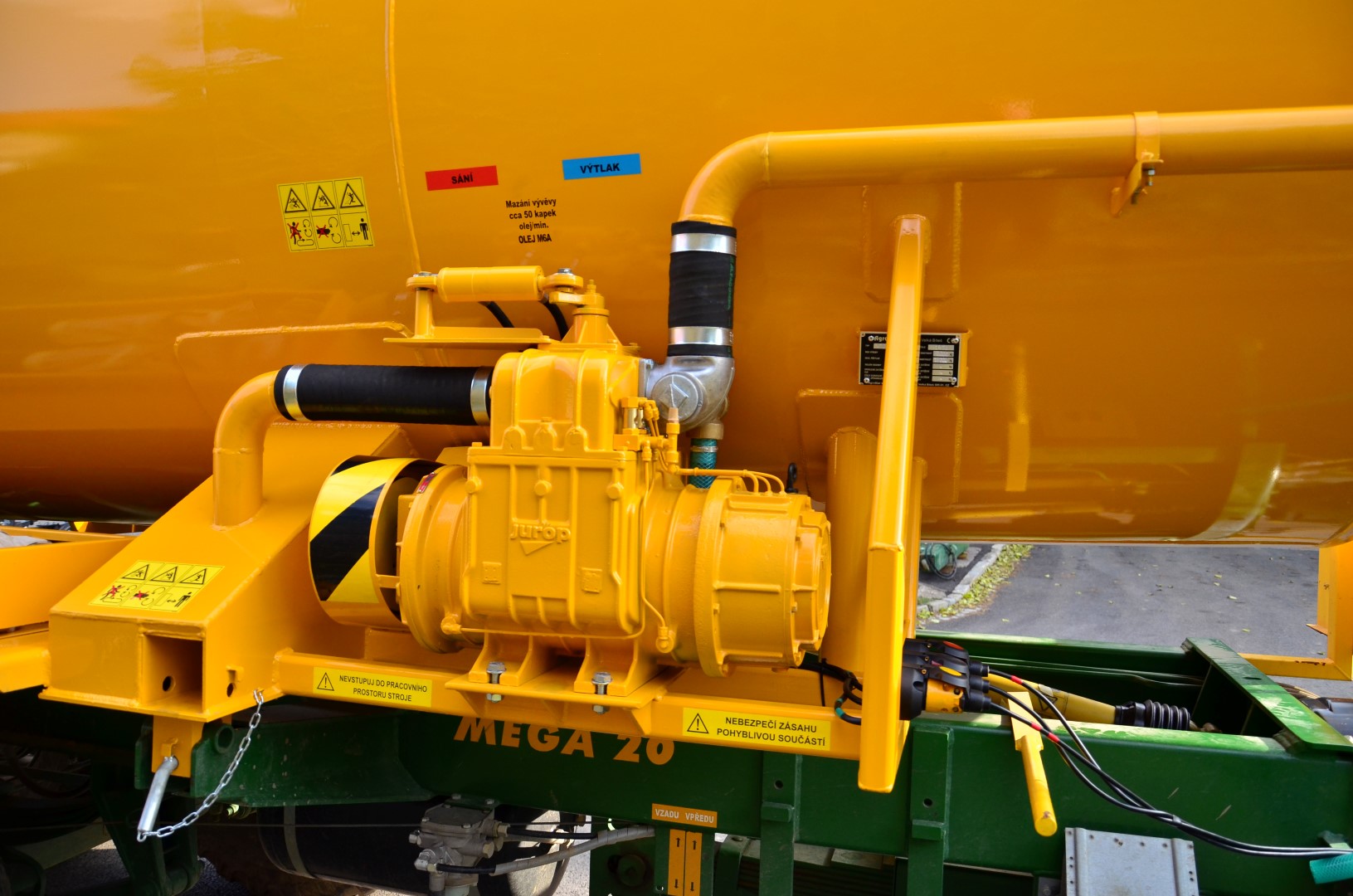

Vacuum compressor
All tanks are equipped with a powerful vacuum pump for quick filling and application.

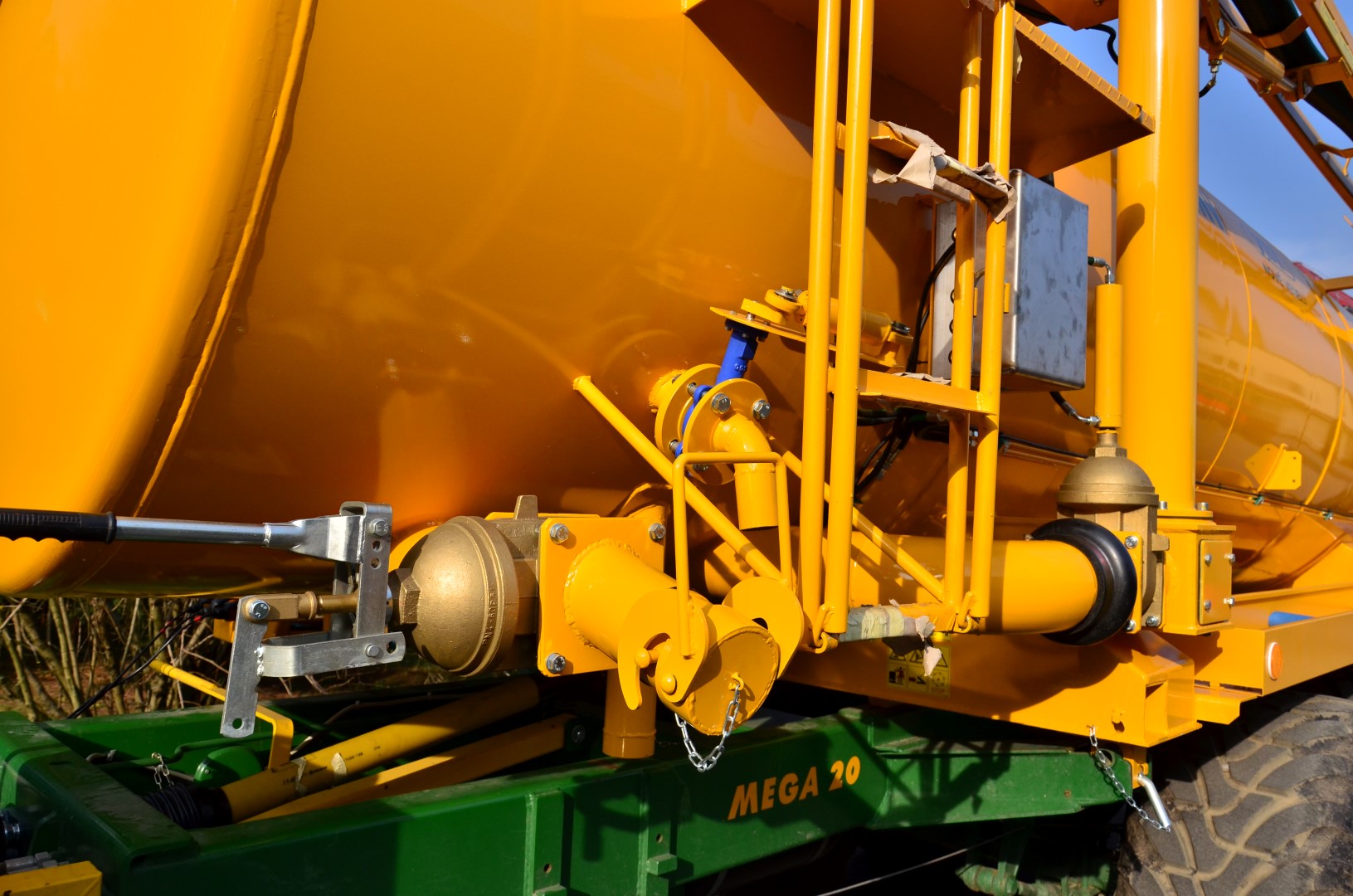

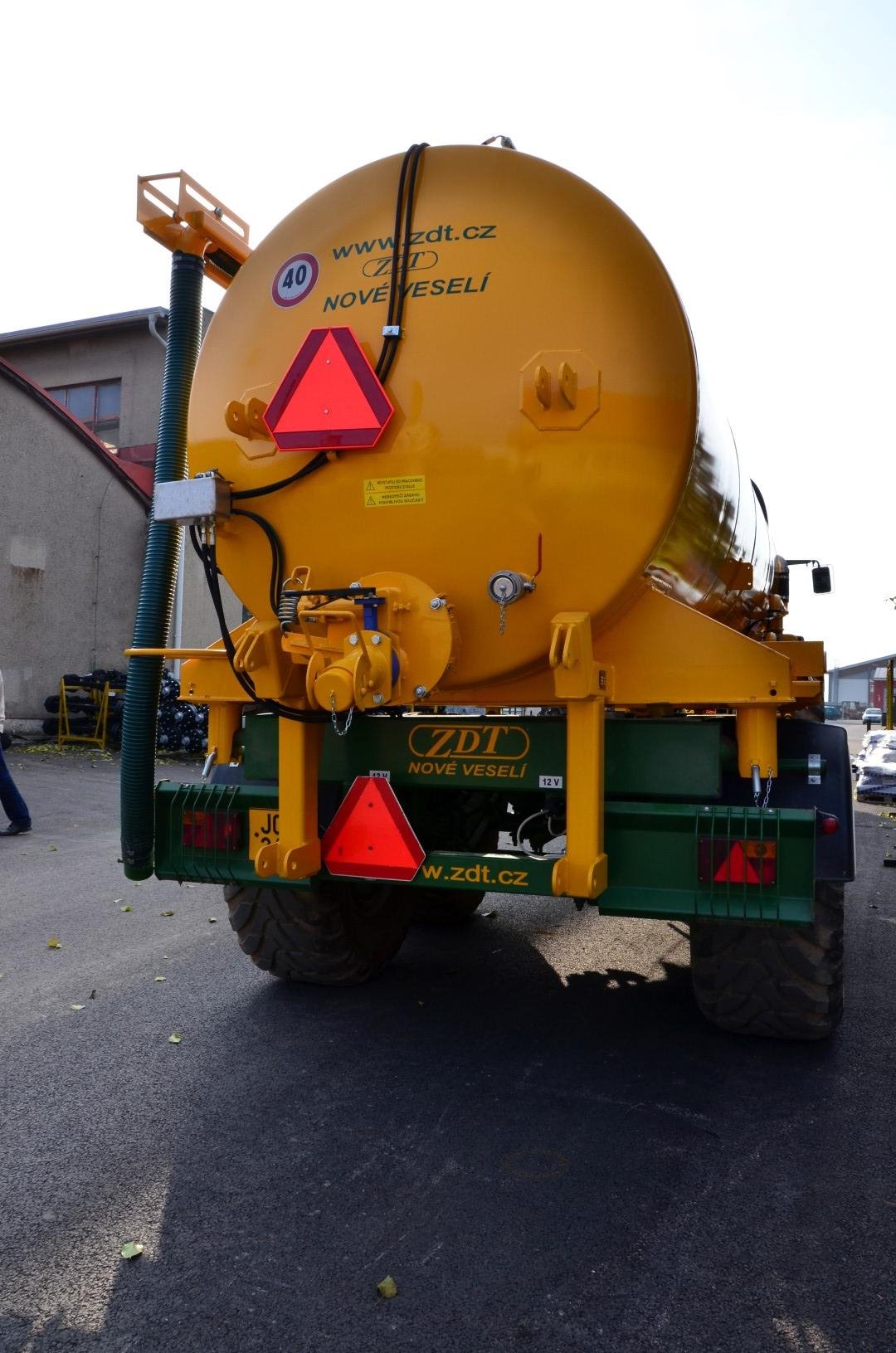

Hydraulic rear valve
The rear outlet lever is equipped with hydraulic control for quick and easy operation.
Breakwater and reinforcements
Inside the tanks are located breakwaters and transverse reinforcements to prevent a sharp spill of liquids.
ALU gutters for accessories
On both sides of the tank there are standard gutters for storage of hoses and accessories.
