Platform trailers
ZDT offers a range of low-loading platform trailers in the form of trailers or semitrailers. They are suitable for transporting round or square bales, boxes of fruit and vegetables or, for example, building lumber.
Low loading area for easy loading
The platform trailer can be equipped with a sideboard or a bale barrier
Suitable for both round and square bales
The platform trailers can be modified to machine transporters

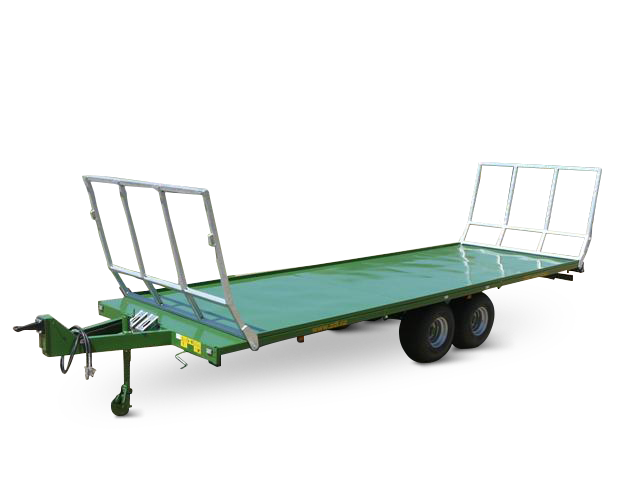

The ZDT platform trailers are designed as semitrailers – NS5V, NS11V and the PV15 GALAN as a trailer. The platform trailers are characterised by a low loading surface with large dimensions for transporting piece cargo such as wood, timber, boxes of fruit or vegetables, they are also suitable for the transport of straw or hay bales, just order bale barriers. Another option is to have a low sideboard against the loss of items during transport. The vehicles can also be specially adapted for the transport of the mechanisation and equip both the ramps and the binding lugs, or the partial reinforcement.
Rozměry
DxŠxV [mm]
Výška ložné plochy [mm]
Ložná plocha (dxš) [mm]
Objem nástavby [m3]
Hmotnosti
Hmotnost provozní [kg]
Hmotnost užitečná [kg]
Hmotnost celková [kg]
Náprava
Náprava
Brzda
Základní pneumatiky
Vlastnosti
Závěs
Rychlost
Zatížení závěsu [kg]
NS11V
9380x2560x930/2545
880
7570x2480
22 balíků 1200 mm
2380
8620
11000
odpružený tandem
pneumatická
400/60-15,5
oko 40 mm
40 km/h
1000
NS5V
6669x2533x1275
815
4995x2409x350
4,3
1390
4610
6000
pevná brzděná
pneumatická
10,5/75-15,3
oko 40 mm
25 km/h
1000
PV15
12525x2560x1175/2720
1170
9722x2480
34 balíků 1200 mm
3 900
11 100
15 000
3x odpružená brzděná
pneumatická
400/60-15,5
oko 40 mm
40 km/h
-
Basic equipment
The plastic storage box
The plastic box offers plenty of space to store the necessary items like tools or binding belts.
Binding belts for bales
Binding belts are a standard part of the delivery of flatbed trailer which can be used for the bale transport.
Loading wedges
Each platform trailer is equipped with a pair of loading wedges for safe shut-down.
Large flat loading surface
Large flat loading area is suitable for transporting piece goods. The low edge makes loading easier.
Extra features
Platform trailer sideboard
Platform trailers can be equipped with low sideboards against loss of items during transport. For the NS5V vehicle, a...
Více
Various types of tires
For optimal driving performance and durability, choose from a wide range of tires available for each model.
Více
Bale barriers
The best-selling platform trailer accessory is, without doubt, the bale barrier. Zinc-plated design, high strength...
Více
Download
NS5V
pdf 296 kB
NS11V sideboard
pdf 336 kB
NS11 V packages
pdf 304 kB
PV15
pdf 333 kB
