Three-way tipping semi-trailers

Single-purpose semitrailers in the form of three way tippers or rear tipping semitrailers for a wide range of applications, available in single or three-axle chassis options. The vehicles partially load the tractor over the drawbar.
Three-way tipping semi-trailers
Multi-purpose use on a small farm
Rich basic equipment
Great variability due to three way tipping

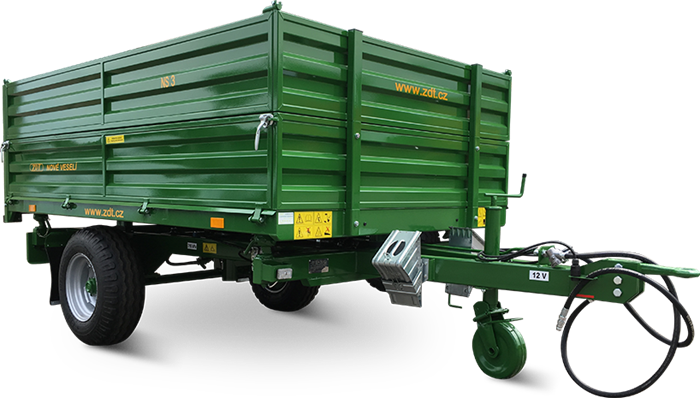

NS 3 semitrailer is the best-selling item in the category
Tractor semitrailer – a three way tipper is a versatile vehicle suitable for a small farm or communal service. It is capable of being used for the transport of grain, hay, feed, haylage or piece material. We supply the semitrailers of 3, 5 and 6 tons.

The tractor semitrailer with a rear tipping body is supplied in three sizes, with a load capacity of 8 and 10 tons on a single-axle chassis and a load capacity of up to 23 t on a three-axle chassis. All semitrailers with rear tipping body are equipped with suspension axles, a hydraulic tail door with a window for emptying and optional extras such as a rolling cover or large-volume extensions. The MEGA33 EASY already has a 400 mm extension, a hydraulically sprung drawbar, rear axle hydraulic locking and forced steering. These semitrailers are suitable for the transport of manure as well as cereals or silage.
Rozměry
DxŠxV [mm]
Výška ložné plochy [mm]
Ložná plocha (dxšxv) [mm]
Objem nástavby [m3]
Hmotnosti
Hmotnost provozní [kg]
Hmotnost užitečná [kg]
Hmotnost celková [kg]
Náprava
Náprava
Brzda
Základní kola
Vlastnosti
Závěs
Rychlost
Zatížení oje [kg]
NS3

4363x2016x1293/1735
892
2942x1867x400/800
2,2/4,4

1056/1195
2834/2695
4000

pevná brzděná
pneumatická
10,5/75-15,3

oko Ø 40 mm
30 km/h
500
NS5

5569x2360x1634/2131
1086
4010x2200x500/1000
4,4/8,8

1766/1961
5124/4929
7000

pevná brzděná
pneumatická
12,5/80-18

oko Ø 40 mm
30 km/h
1000
NS6

5594x2352x1675/2130
1125
4008x2200x500/1000
4,4/8,8

1791/1992
6099/5898
8000

pevná brzděná
pneumatická
14,5/80-18

oko Ø 40 mm
30 km/h
1000

Basic equipment

The basic equipment includes a robust frame, a high load capacity, a pneumatic brake, 25 or 40 km/h speed and a pair of loading wedges. NS8, NS13 and MEGA33 EASY semitrailers also with a hydraulic rear door with a window for emptying.
  • Robust frameAll ZDT frames are made of high quality steel, adapted to increased stress in the agricultural environment.
  • Tipping body

    The easiest and most common principle of unloading loads. The superstructures are tipping into three ways or just backwards.

  • Upper hitch or tow barNS3, NS5 and NS6 vehicles are attached to the upper hitch. NS8, NS13 and MEGA33 EASY vehicles, on the contrary, to the tow bar.
  • SpeedVehicles can be hanged and used at standard speeds of 25 km/h, NS8, NS13 and MEGA33 EASY at a speed of 40 km/h.




Additional extra paid equipment

To improve the properties of your ZDT vehicle, you can also use some of the additional extra paid equipment. Additional extra paid equipment offers features for specific applications, such as sideboard extensions, various types of tires, or a rolling cover.
