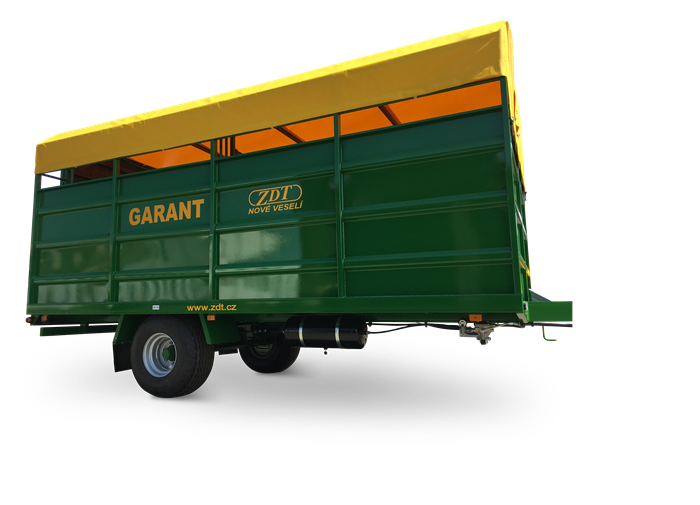

Livestock semi-trailers

Spacious vehicles for transporting your cattle – beef cattle, pigs, goats or sheep. Vehicles are designed as semitrailers with getting in from the rear side from the ground or the ramp. The interior space is divided by partitions for easier and safer loading and transport.
Livestock semi-trailers
Universal transporter for all types of cattle
Getting in from the back from the ground or ramp
Safety partitions for operator´s protection

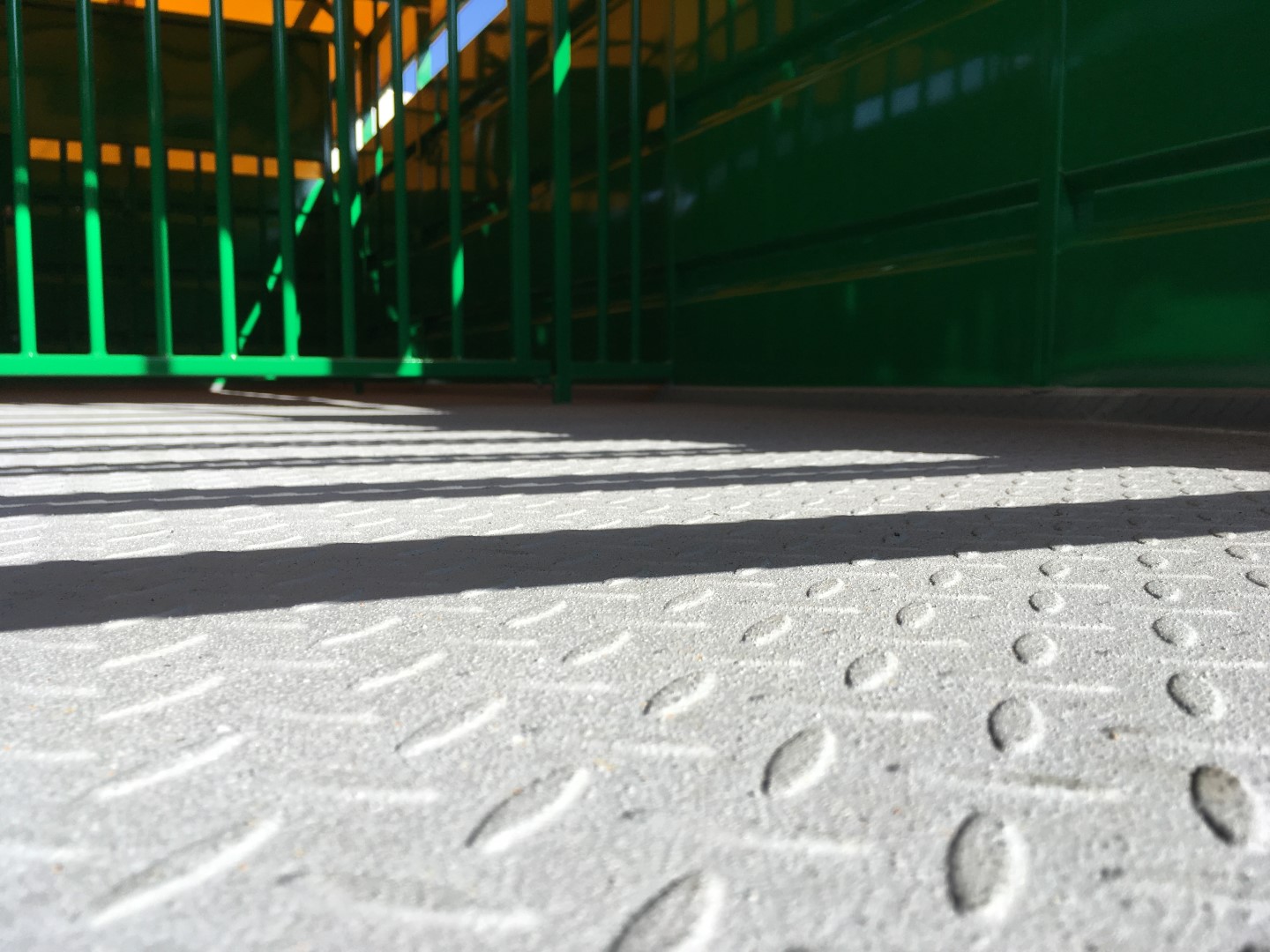

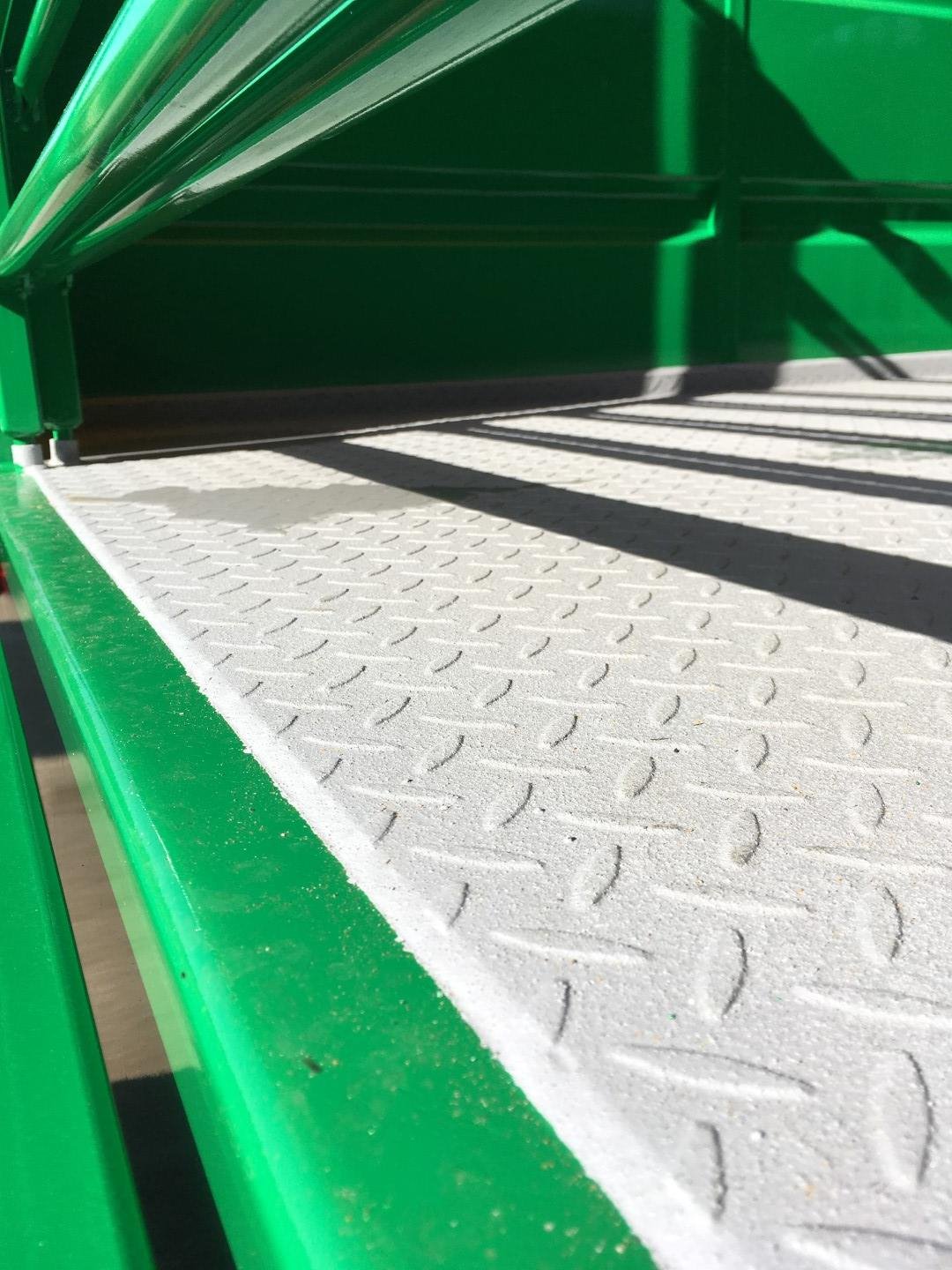

Possibility to provide anti-slip coating for the floor

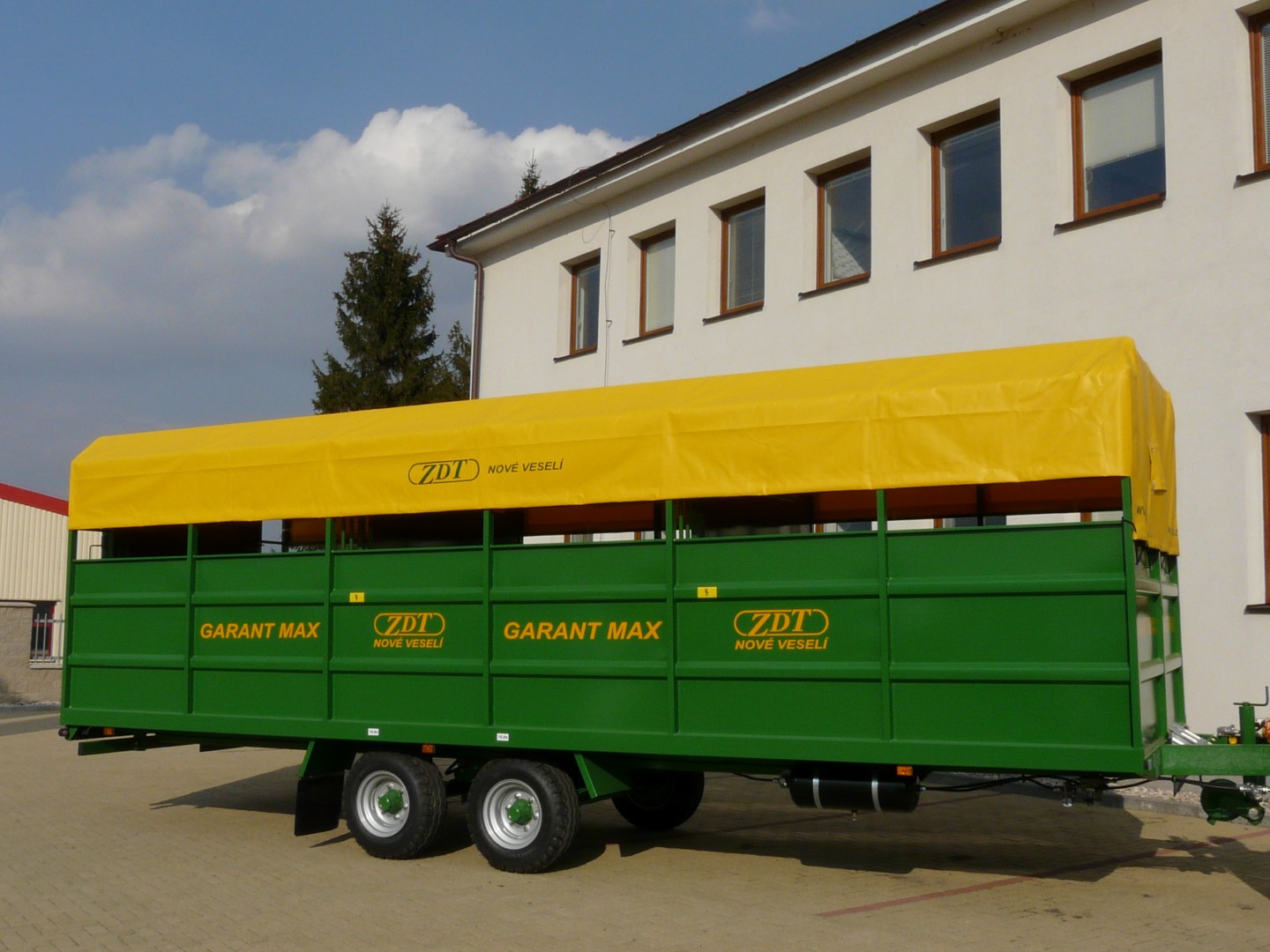

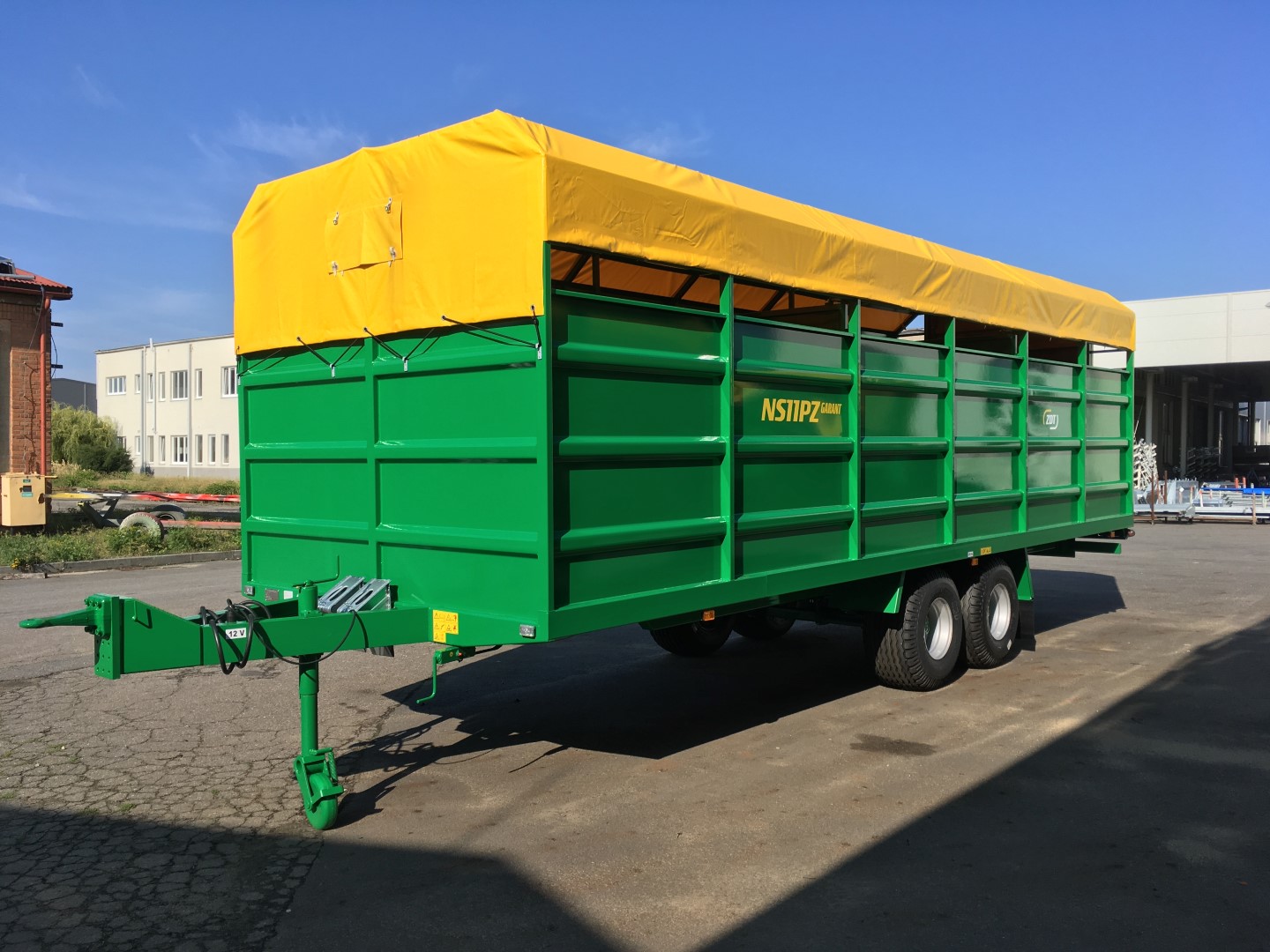

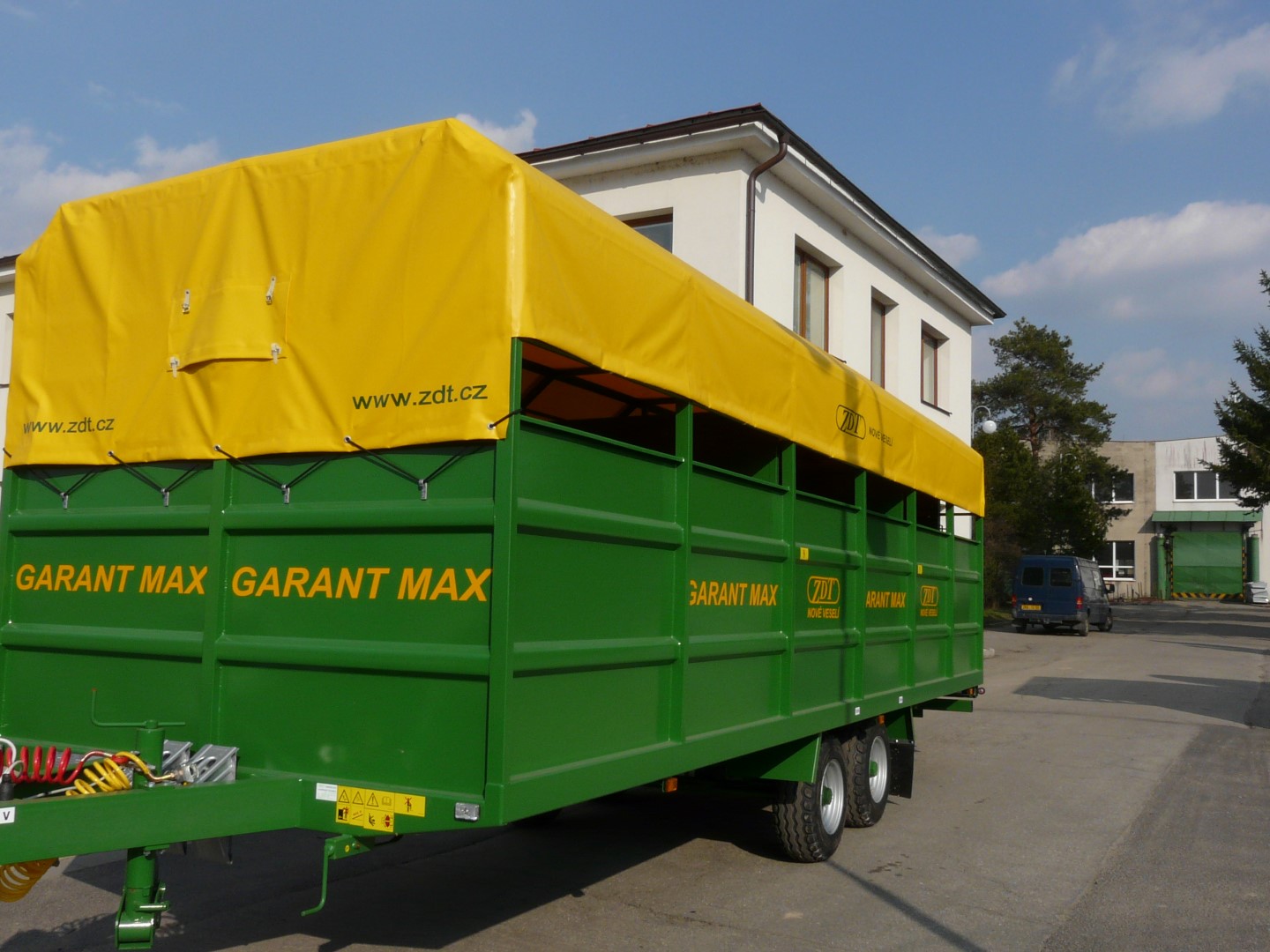

We offer NS PZ cattle semitrailers in two variants – with capacity of 5 and 9 tons. The livestock semitrailers are made as a steel structure – a weldment, which is divided by one, respectively two partitions in the interior. These partitions serve both to separate animals and also to protect the operator. The partition is equipped with a full sheet metal and a floor stop that forms a protective zone for the operator when the animal is startled.

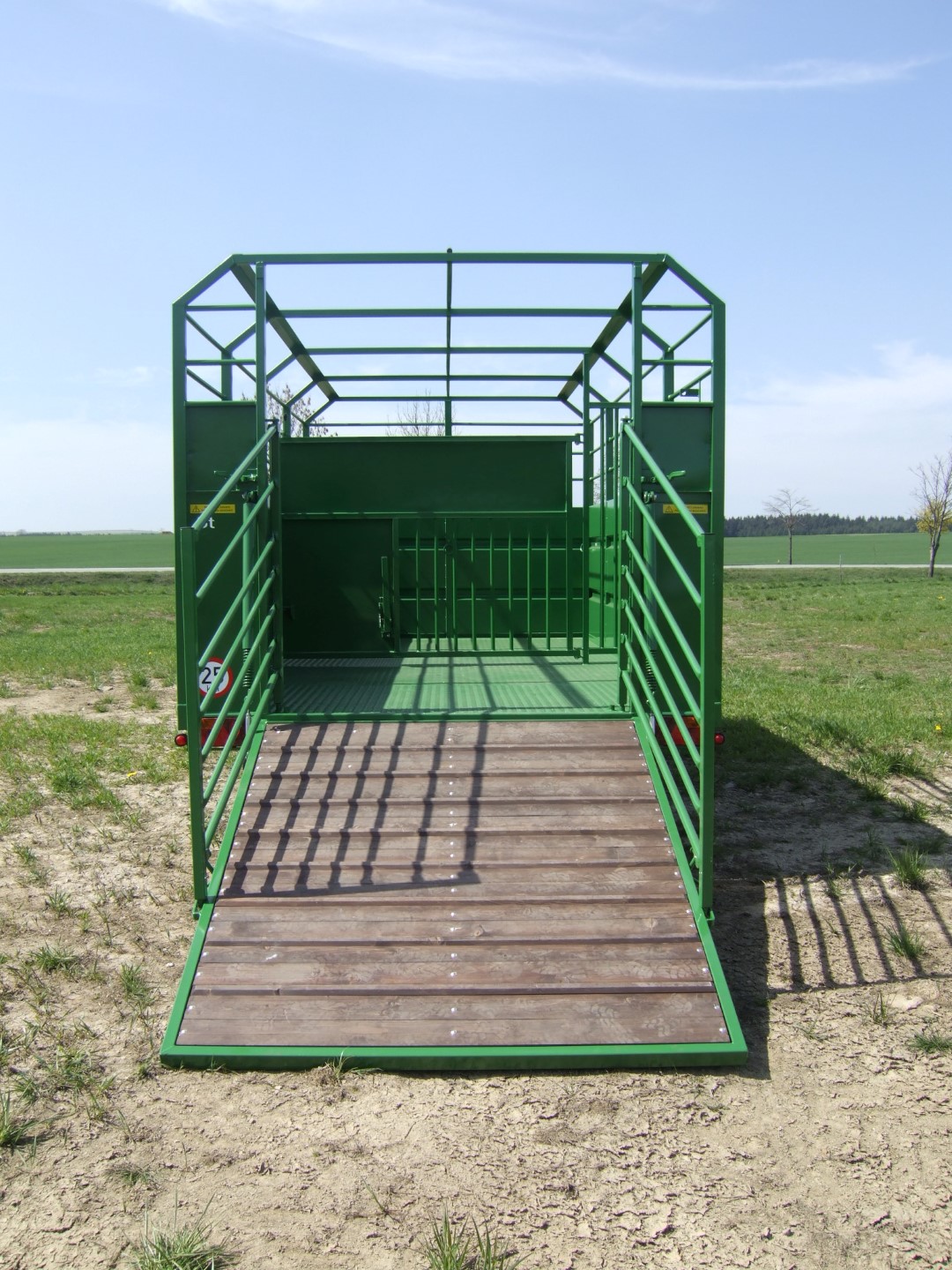

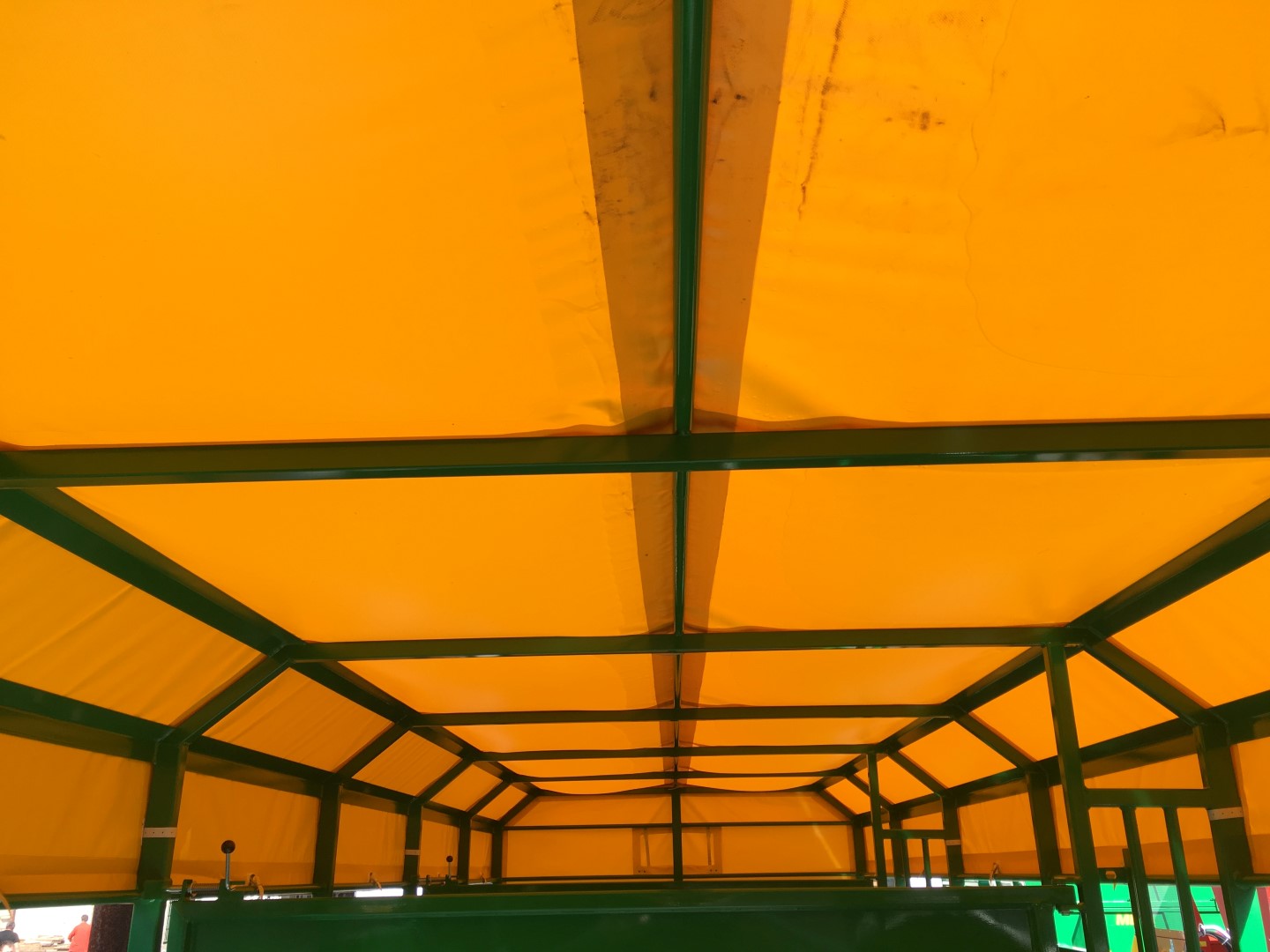

Getting in from the manually folded rear door either from the ground or from the raised ramp. The vehicles can be equipped with a roof cover or anti-slip coating.
Rozměry
DxŠxV (mm)
Výška podlahy (mm)
Rozměr ložné plochy (mm)
Rozměry
Hmotnost provozní [kg]
Hmotnost užitečná [kg]
Hmotnost celková [kg]
Všeobecně
Náprava
Základní pneu
Závěs
Zatížení závěsu [kg]
Rychlost [km/h]

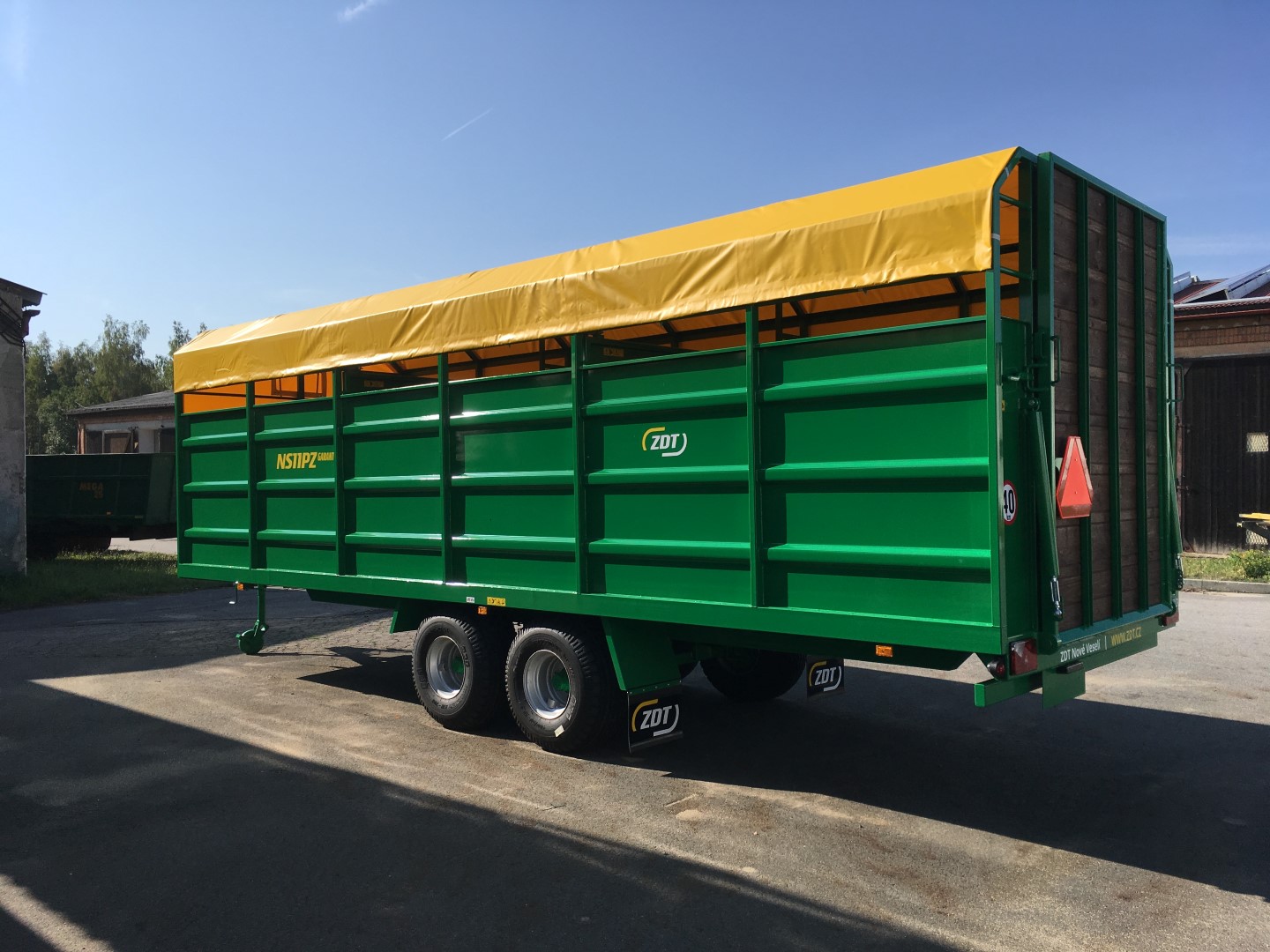

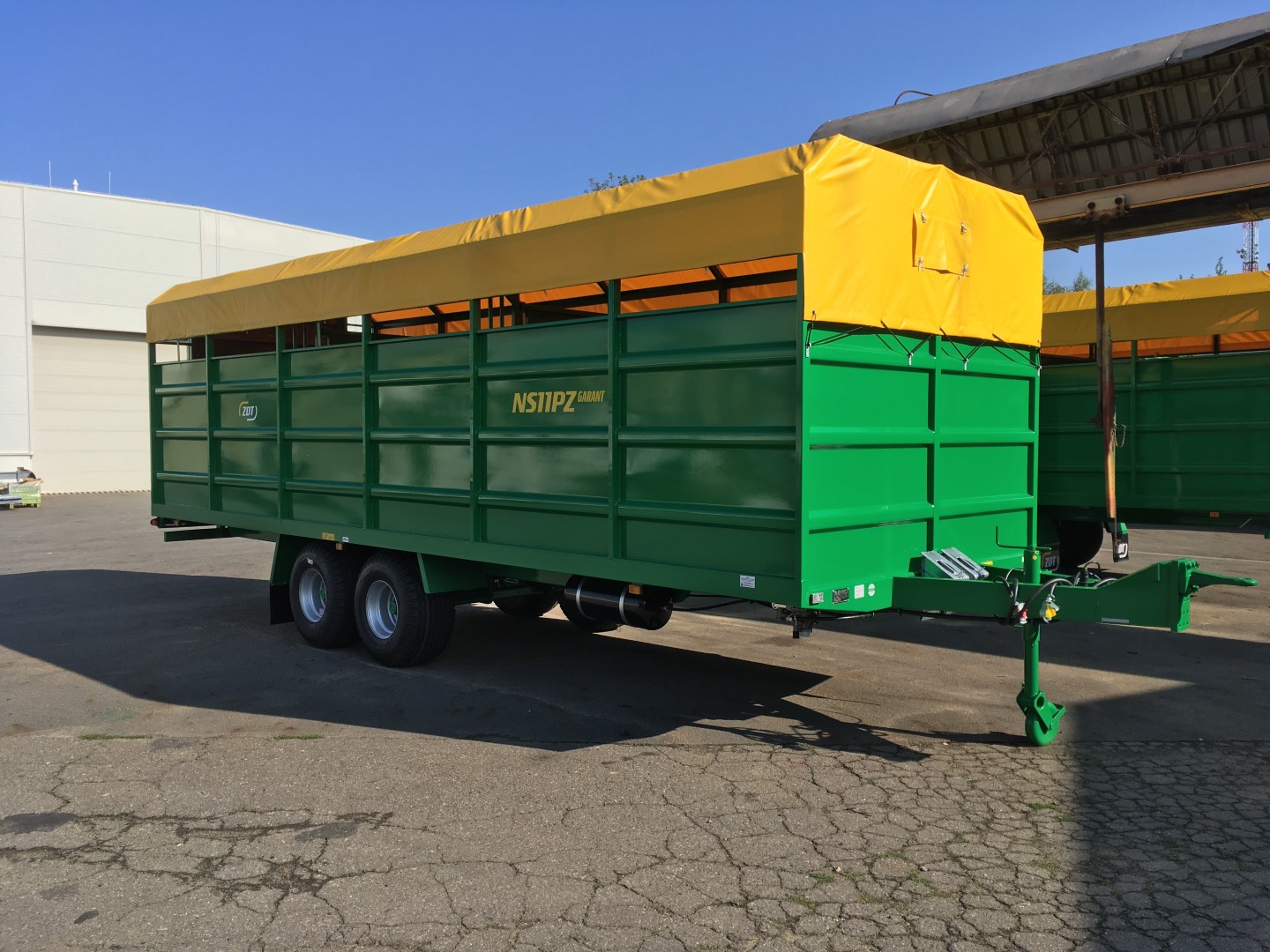

NS11PZ

9300x2527x3150
880
7534x2401

3380
8860
11000

tandem, odpružený
400/60-15,5
oko 40 mm
950
40
NS5PZ

6790x2527x3090
820
4993x2401

1950
5180
7130

jednoosá, pevná
400/60-15,5
oko 40 mm
830
25

Basic equipment

  • Separate interior space
  • The interior space is divided into two, respectively three chambers for easy handling, animal safety and comfort.
  •

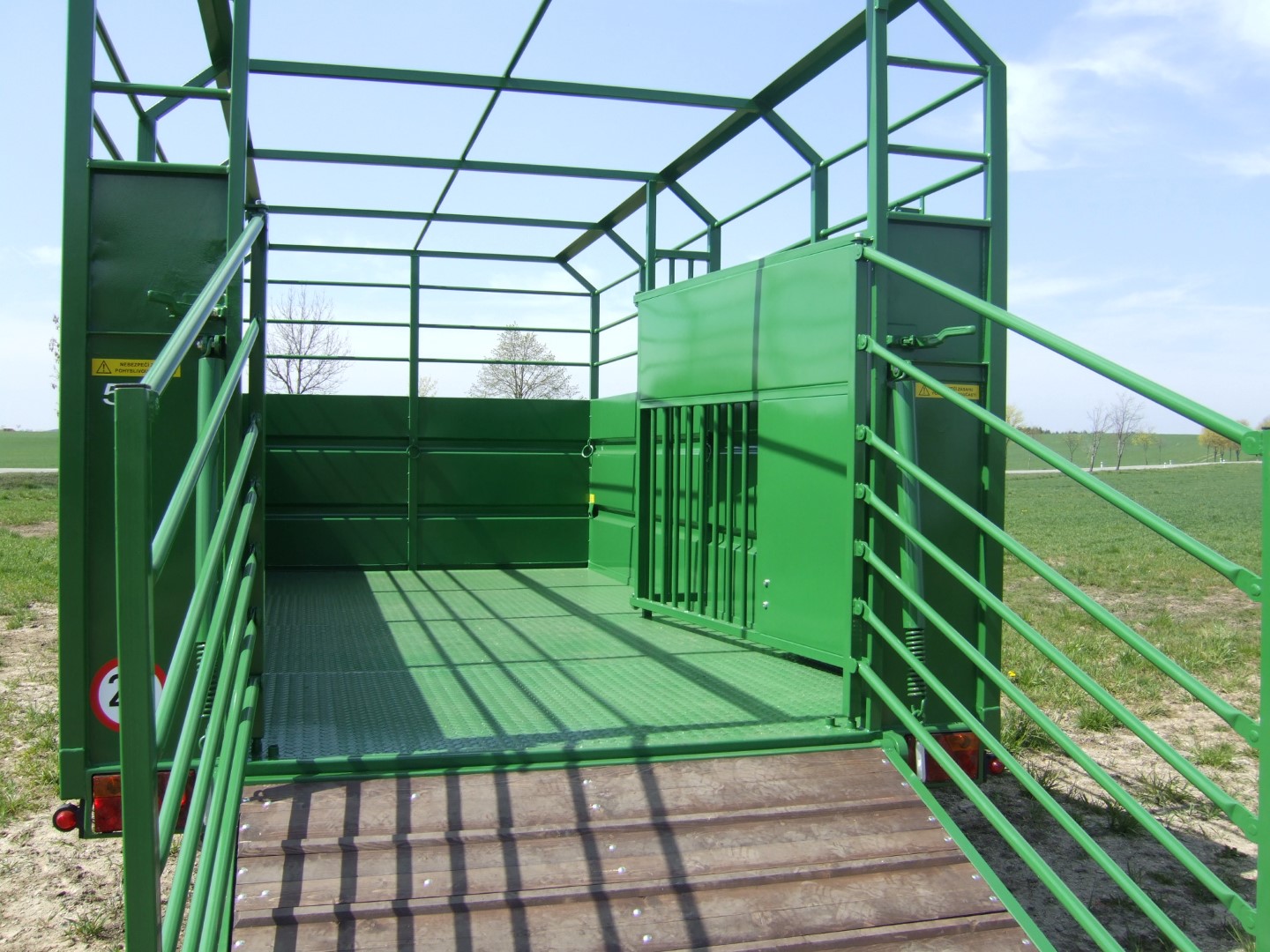

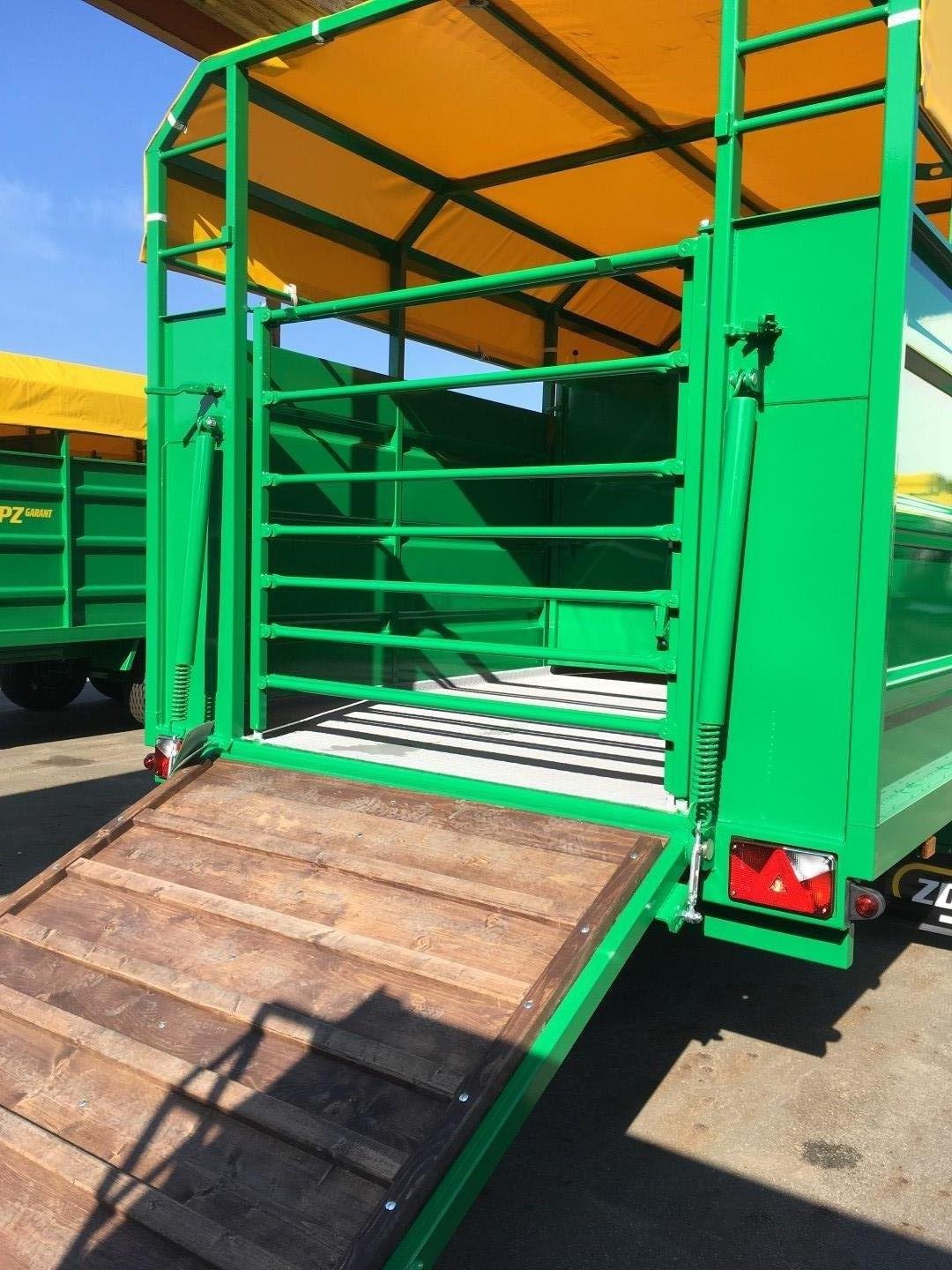

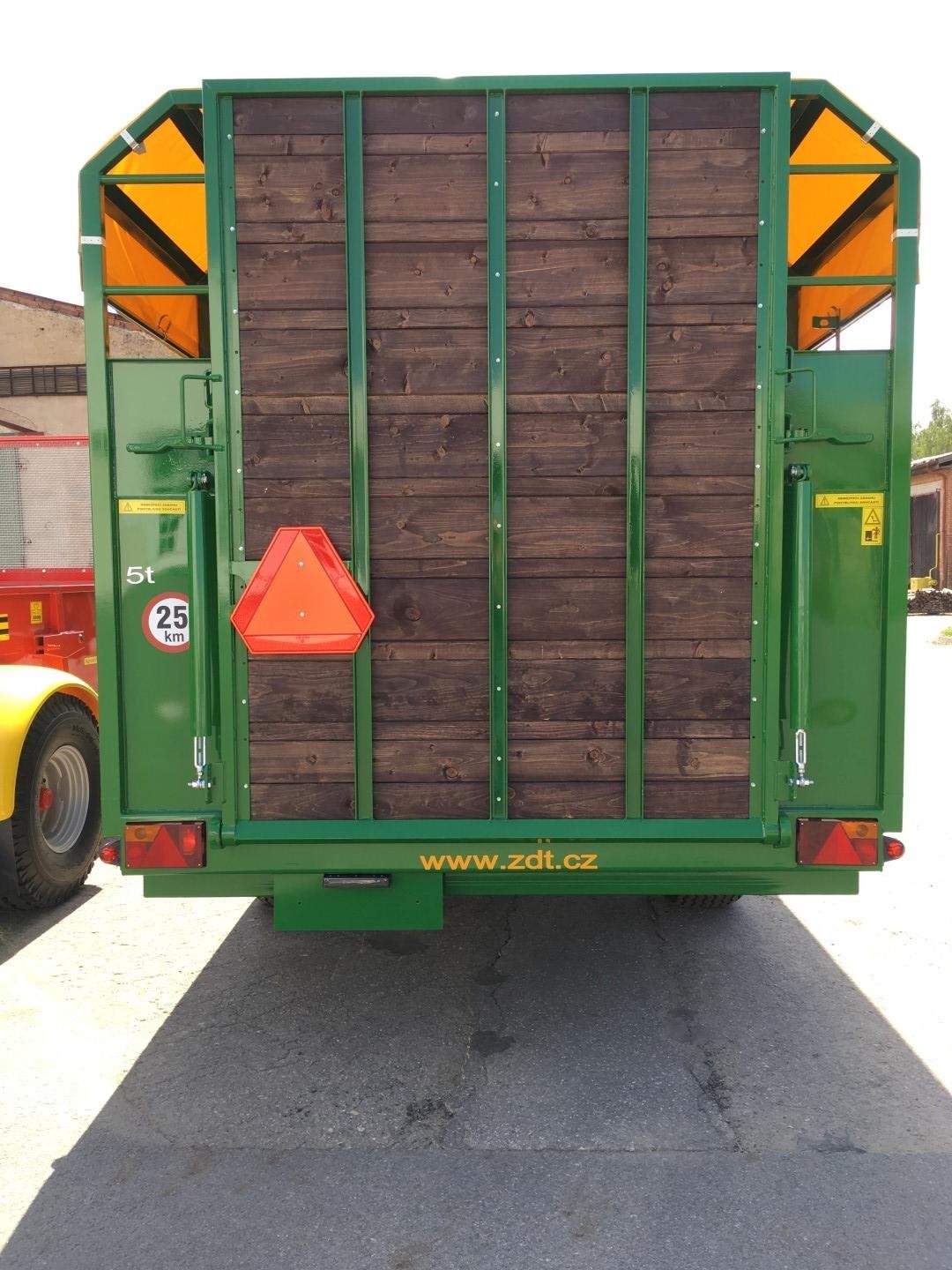

  • Rear door
  • Rear door made of wooden boards is equipped with a pair of springs allowing easy opening even for the individual.
  •

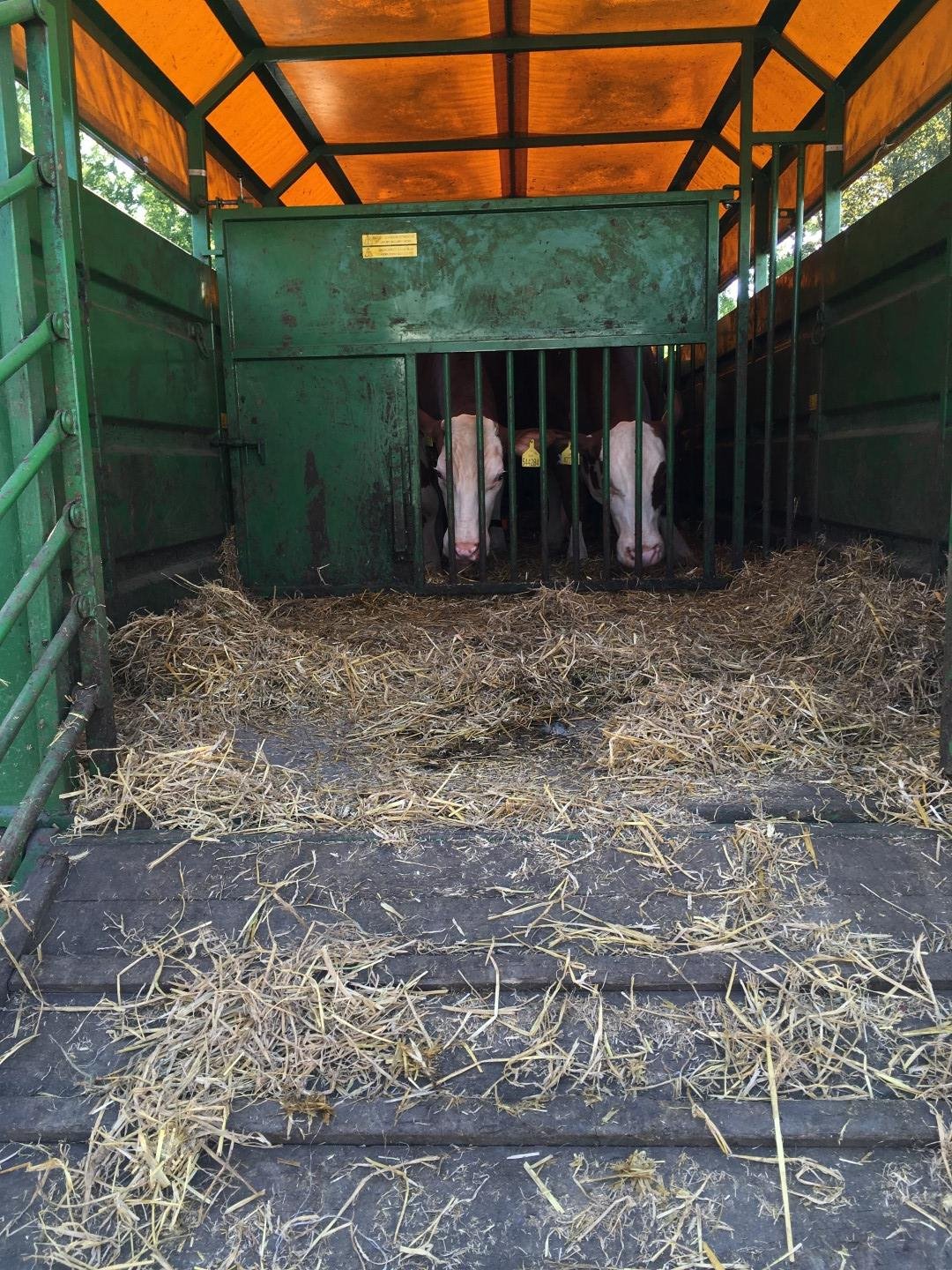

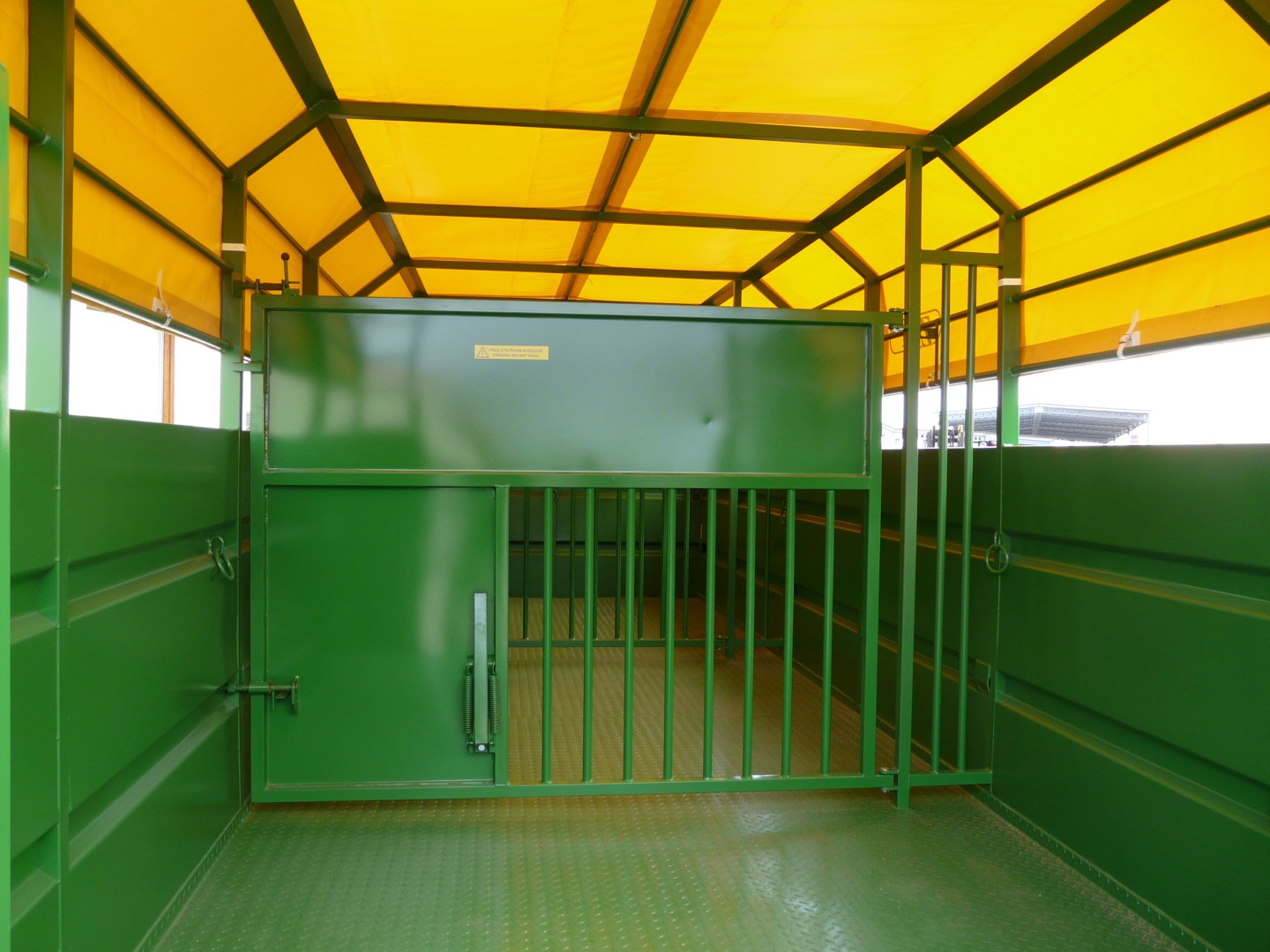

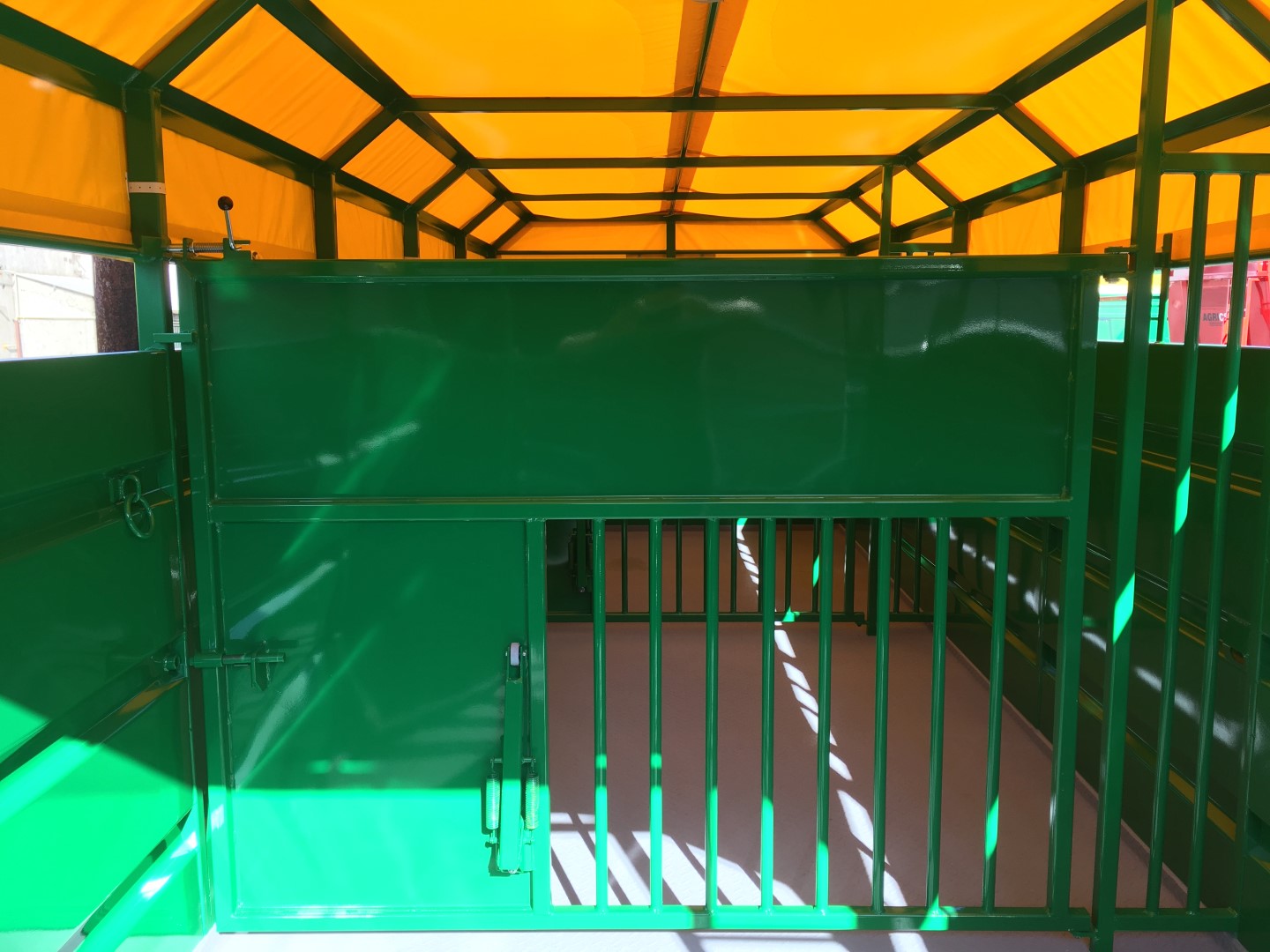

  • Safety partitions
  • Inside partitions are designed to protect the operator from injury by the animal. The full sheet metal surface and the floor stop will ensure your safety.
  • Tie lugs inside
  • Inside the vehicle, you can find welded lugs on the walls in case of a startled animal transport.
  •
