RM spreader-bgc

RM spreader

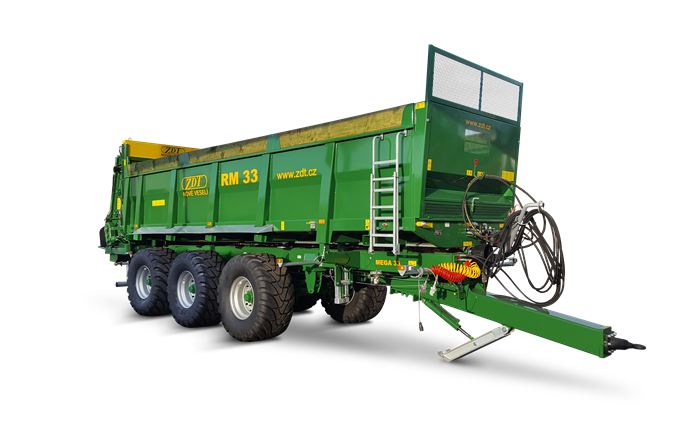

The organic fertiliser spreader is a versatile machine for applying manure, compost or other organic matter. It works on a horizontal principle and it is a part of an interchangeable system, available for GRAND SUPER chassis and all MEGA chassis, as well as for lorries.
RM spreader
Universal use for organic fertilisers – manure, residuals refinery, compost
Rich basic and wide additional extra paid equipment
Horizontal mechanism provides wide spread and fine dosing
Three milling cylinders ensure smooth and correct dosing of the manure
Universal spreader of organic fertilisers works on the principle of a floor conveyor, three horizontal milling beaters and a spreading table. This design ensures optimal dosing of the fertiliser, which is subsequently ejected to a width of up to 25 m. The spreader can be used for application of manure, compost or sewage sludge. The drive of the floor conveyor is provided by a hydraulic motor. Cardan shaft then drives the milling rollers and spreader discs. The entire system is protected against overload and damage by means of shear bolts and electronic revolution sensor. According to the speed output from the tractor, the gearbox (540/1000 rpm) is selected to the cardan shaft.
The spreader is equipped with a sophisticated technology that is easy to maintain and clean. The most stressed parts are easily replaceable. These are the teeth on the milling rollers, the blades on the spreader blades and the protective edges around the discs. After wear, it is not necessary to replace the entire device, but only parts. Optionally, the spreader can be equipped with a rear sealing door that prevents the material from being lost during transport and further protects the tractor from flying material. It is also possible to equip an electronic floor speed control, which runs directly from the tractor via an ergonomic controller.
Rozmetadlo
Objem [m3]
Hmotnost [kg]
Hmotnost s podvozkem [kg]
DxŠxV s podvozkem [mm]
Kompatibilní s
Potřebný výkon traktoru [hp]
RM13

12
3500
5750
7900x2550x3390
MEGA13
120
RM20

14
3950
7400
8790x2550x3460
MEGA18, MEGA20, MEGA21
180
RM25

16
4300
9150
9400x2550x3460
MEGA25
220
RM33

18
4900
9950
10560x2550x3550
MEGA33
280

Basic equipment

  • Horizontal device
  • The horizontal spreading device provides fine and effective material dosing and is equipped with a pair of three-blade discs.
  • Three horizontal beaters
  • Three horizontal beaters with welded milling inserts provide a reliable solution in durability and service life.
  •
  • Hydraulic conveyor
  • The hydraulic floor conveyor offers a powerful form of material movement to spreader. Speed ​​is adjustable in ten levels.
  • Cleaning scraper
  • You will find a cleaning scraper for the spreader maintenance. Its shape and rubber blade makes possible the removal of any residue after work.
