Trailers

The classic concept of the agricultural trailer – tipper, two-axle version with turntable. Tractor trailer designed for universal use in transport. It is suitable for cereals as well as for bulk transport, animal feed and others.

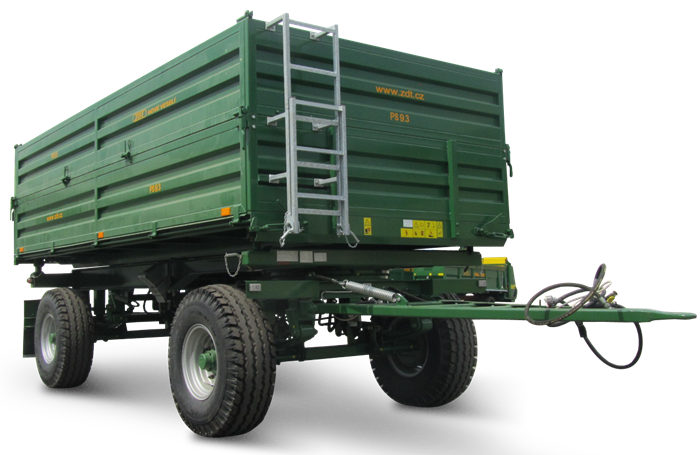

Two-axle three way tipping trailer

Rear hitch equipment for the connection into the combination of vehicles

Possibility to equip the extension walls for larger volumes

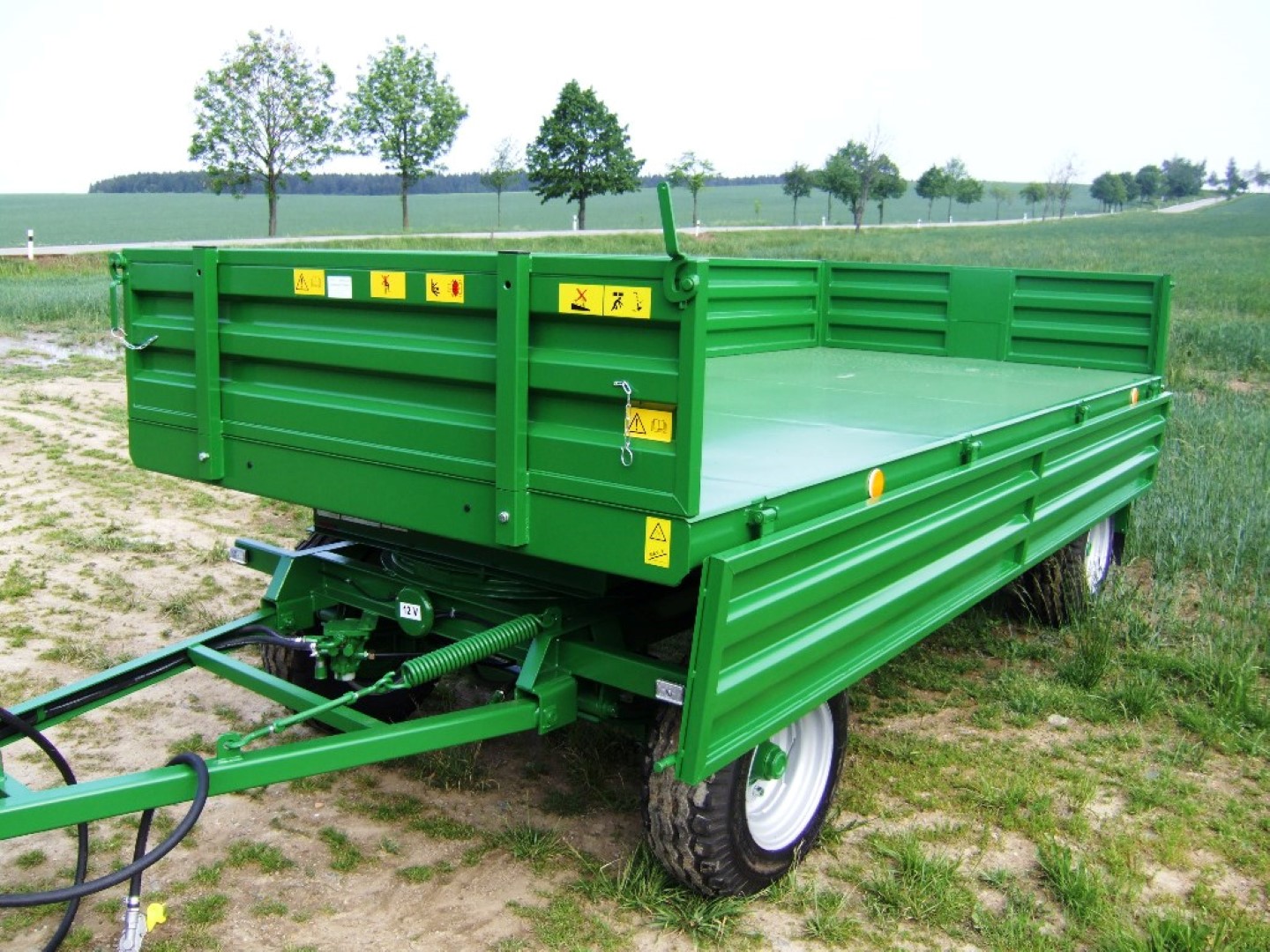

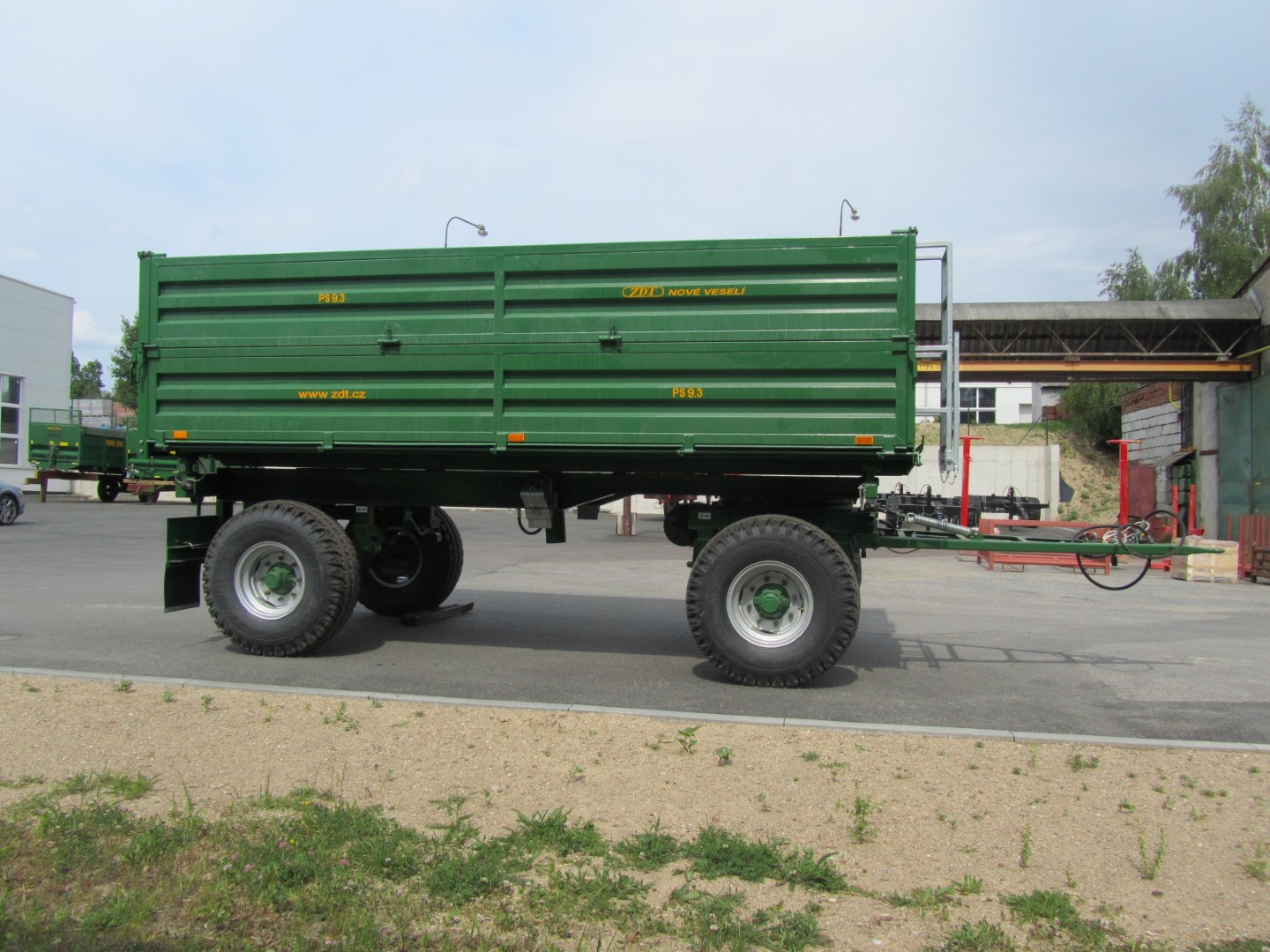

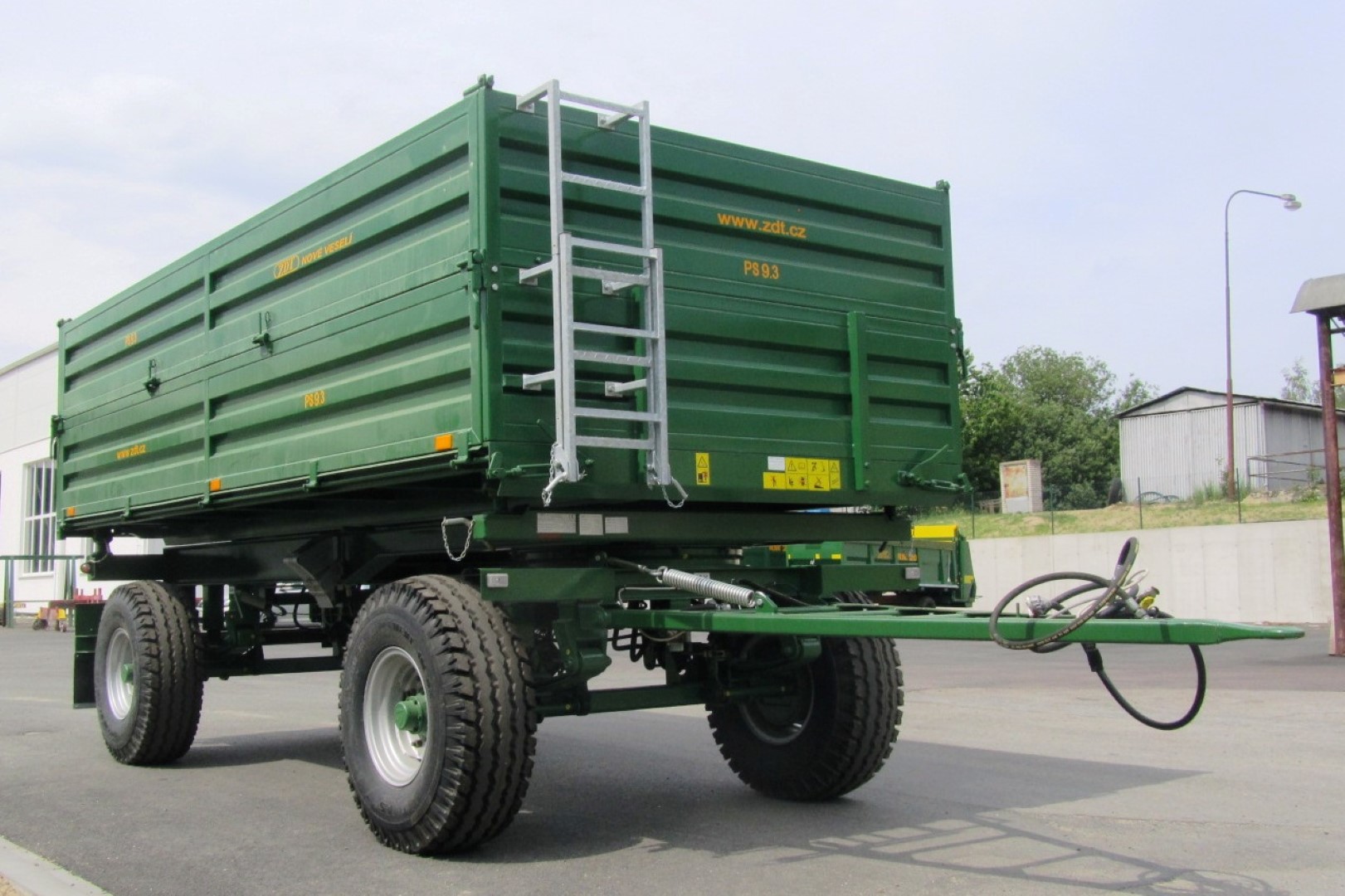

The two-axle trailer with a turntable offers users a comfortable ride, high load capacity and easy shut-down even with cargo. Parabolic suspension ensures comfortable ride without cargo damage. It is available as standard in two sizes with a capacity of 5 and 11 tonnes. The PS5.3 type comes with a low sideboard and extension for an extra charge. The PS11.3 type comes with a high sideboard already in the base version. The vehicles are three way tipping and offer high versatility of use.

Rozměry

DxŠxV [mm]

Výška ložné plochy [mm]

Ložná plocha (dxšxv) [mm]

Objem nástavby [m3]

Hmotnosti

Hmotnost provozní [kg]

Hmotnost užitečná [kg]

Hmotnost celková [kg]

Náprava

Brzda

Základní pneumatiky

Vlastnosti

Závěs

Rychlost

PS5

6243x2080x1653(2194)

1150

4400x1920x500/1000

4,25/8,55

1830/1950

5000/4880

68307500

2x odpružená brzděná

pneumatická

10,0/75-15,3

oko 40 mm

25 km/h

PS11

7050x2533x2690

1480

4860x2350x1200

6,8/13,6

3480/3780

10520/10220

14000

2x odpružená brzděná

pneumatická

14,5/80-18

oko Ø 40 mm

40 km/h

Basic equipment

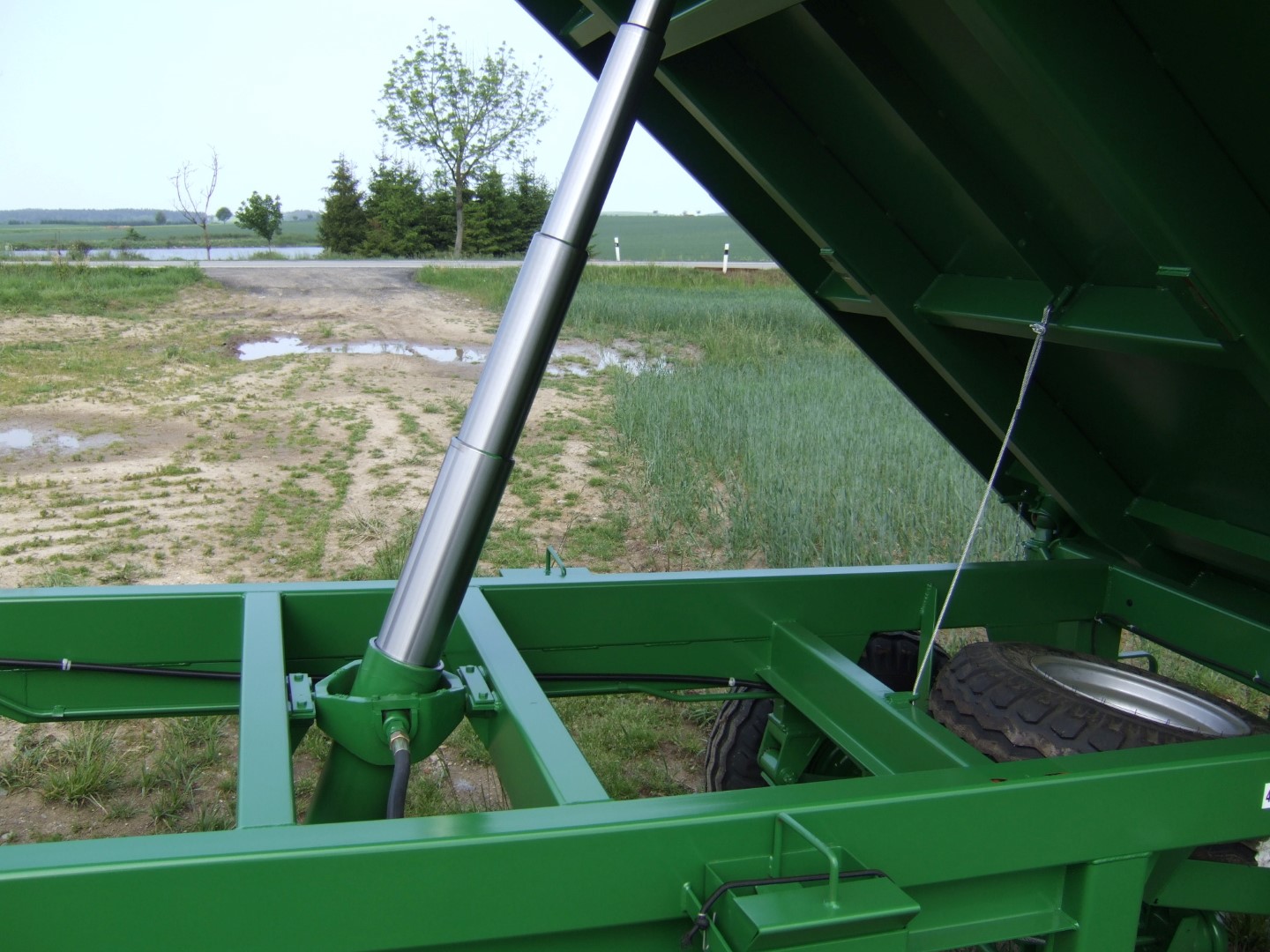

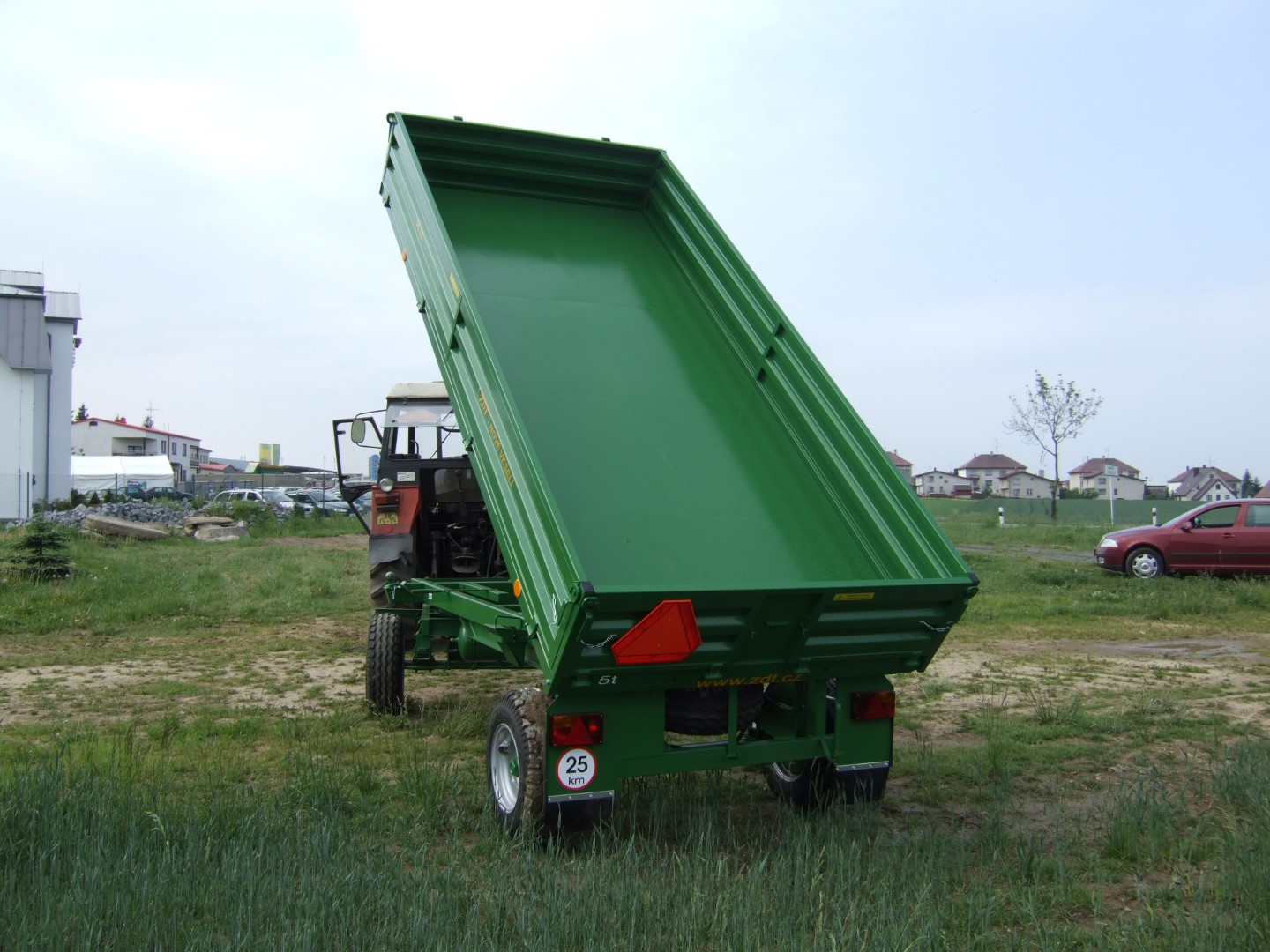

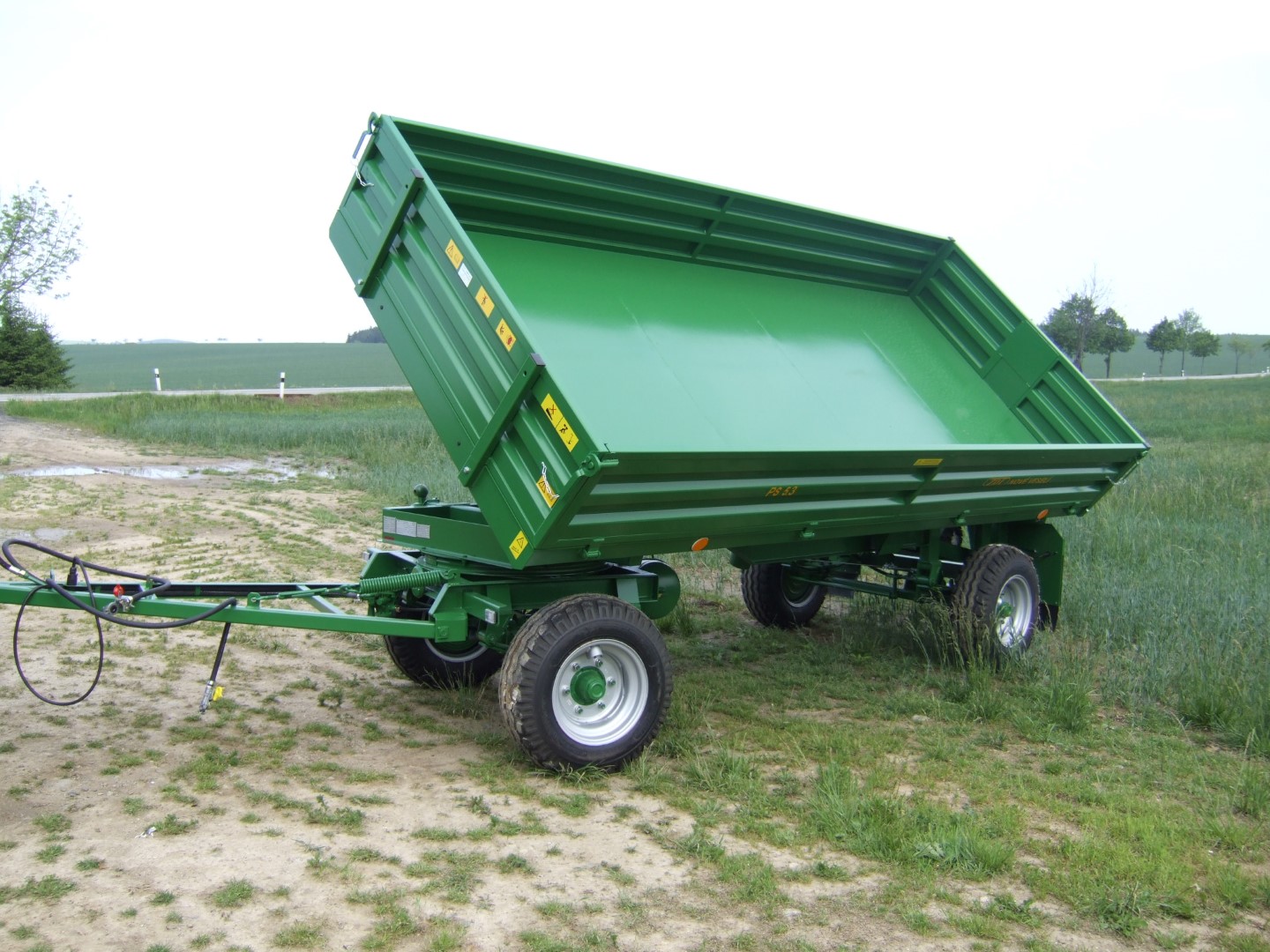

Three way tipping
A key element in the PS agricultural trailers is the three way tipping to achieve great versatility.
Classic Trailer Concept
The basic difference between trailers and semitrailers is their interaction with the tractor. Due to the self-supporting construction, the trailer does not burden the tractor´s drawbar. It only creates a pulling force on it.
Robust construction
PS tipping trailers are designed with an emphasis on long life, functionality, variability and versatility. You can handle everything from grain, straw to soil.

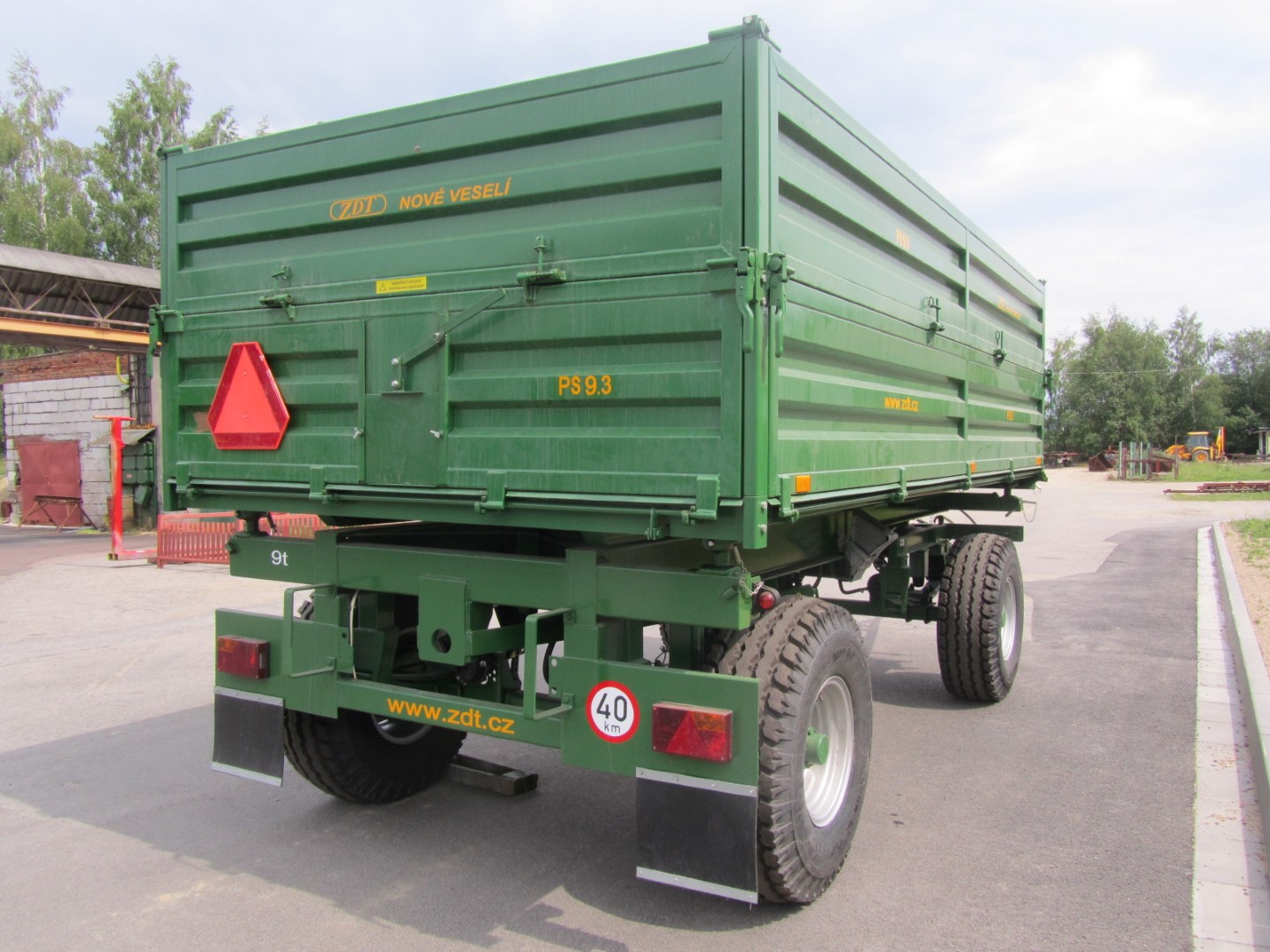

Rear tail door window for emptying
Both models of tipping trailer are as a standard equipped by window for unloading in the rear door. This ensures easy grain flow routing when unloading.
