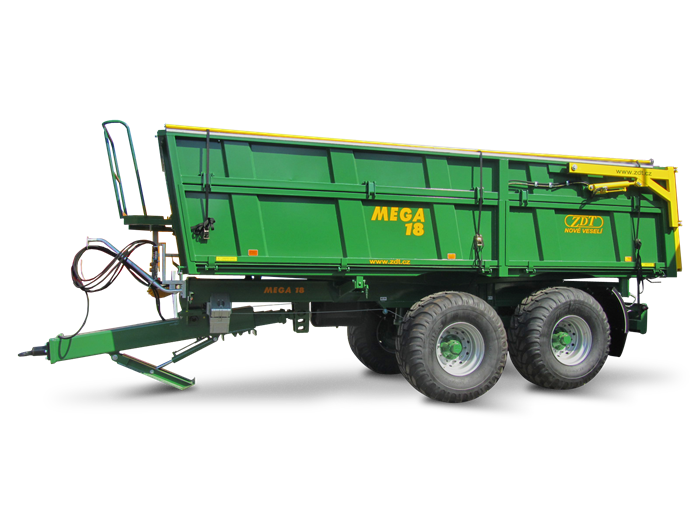

Rear tipping body

Dump body or just rear tipping body. Unloading option only backwards. A universal helper for transporting all commodities from animal feed, grain to manure.

Multi-purpose use on a small farm

First-class treatment

Part of interchangeable system

The rear tipping body is available for all MEGA and GRAND SUPER chassis. It is designed for anyone who does not have to care the height of the vehicle while tipping and uses rear tipping as the most common type of unloading. The rear tipping body offers great strength and robust construction at an attractive price.

Rear tipping body volume for chassis:

Chassis	Basic volume [m3]	Volume with extensions (500 mm)
Grand Super	12,5	17,5
MEGA 13	13,5	18,5
MEGA 18	16,5	25,5
MEGA 20	21	27,5
MEGA 25	23	30,5
MEGA 33	30	40

Bc. Tomáš Michal

+420 608 705 702 tomas.michal%at%zdt.cz

Basic equipment

Conical shape of the body
Each tipping body from ZDT extends backward to facilitate tipping
Ladder in front
On each tipping body, you can find the ladder in front of the body
Robust construction
The rear tipping body is suitable for transporting various types of materials, such as cereals, livestock manure, etc.
Hydraulic rear door
The rear door is hydraulically controlled in its base and contains a grain chute for unloading.
