Rear tipping semi-trailers

Single-purpose rear tipping semitrailers for a wide range of applications, available in single, twinaxle or three-axle chassis options. The vehicles partially load the tractor by the drawbar.
Rear tipping semi-trailers
Rich basic equipment
First-class treatment
Mechanical or hydraulic sprung
Possibility of forced steering
The tipping trailers are mostly suitable for various commodity transporters in agriculture. They are suitable for seeds, fertiliser, harvest maize, wheat as well as for manure or compost transport. Big benefit is represented by robust structure, which ensure reliability in tough conditions, and comprehensive standard specification, which come up with modern technologies, safety, good technical parameters, and intereting price.

The trailer come up in various sizes, starting with totalweight 12 and 13 on single axle chassis, with total weight 23 tons on twinaxle chassis and with 33 tons of total weight on triple axle chassis. All of these includes sprung axles, rear hydraulic door, sprung drawbar, coupler selection (K80 or eye 50 mm) and pneumatic brakes. There are further available wide extra features e.g. sidewall extension, rollover cover, hydraulic components, LED work lights, etc. Please find out the leaflets and drawings below.
Rozměry
DxŠxV [mm]
Výška ložné plochy [mm]
Ložná plocha (dxšxv) [mm]
Objem nástavby [m3]
Hmotnosti
Hmotnost provozní [kg]
Hmotnost užitečná [kg]
Hmotnost celková [kg]
Náprava
Náprava
Brzda
Základní kola
Vlastnosti
Závěs
Rychlost
Zatížení oje [kg]
NS8

6356x2550x2455/3122
1410
4460x2200/2100x1030/1530
10/15

3140/3280
8660/8520
10800/11800

odpružená, brzděná
pneumatická
550/60-22,5

oko Ø 50 mm/ K80
40 km/h
2000
NS13

6380x2550x2690x3358
1410
4350x2200/2100x1275/1775
12,5/17

3300/3460
9700/9540
13000

odpružená brzděná
pneumatická
560/60 R22,5

oko Ø 50 mm/K80
40 km/h
3000
NS18

7760 x 2550 x 2772
1372
5500 x 2170/2270
17/23

5140/5455
13360/13045
18500

odpružená, brzděná
pneumatická
560/60 R22,5

oko 50 mm/K80
40 km/h
2000

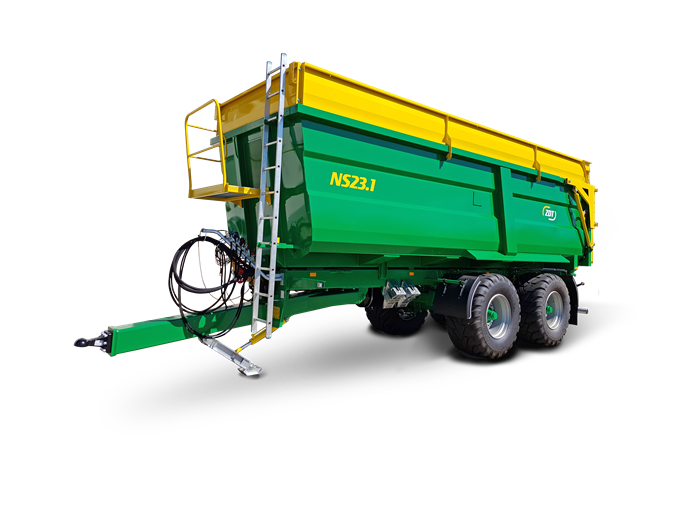

NS23

9237x2574x3166/3566
1563
7000x2170/2270
25/32

7400/7770
15600/15230
23000/23000

tandem, brzděný
pneumatická
600/55 R26,5

oko Ø 50 mm/ K80
40km/h
3000
NS33E

11232x2574x3369/3769
1569
9000x2270/2170x1800/2200
36/45

10200/10650
16800/16350, 22800/22350
27000/33000

tridem, brzděný
pneumatická
600/55 R26,5

oko Ø 50 mm/ K80
40 km/h
3000

Basic equipment

The basic equipment includes a robust frame, a high load capacity, a pneumatic brake, 25 or 40 km/h speed and a pair of loading wedges. NS8, NS13 and MEGA33 EASY semitrailers also with a hydraulic rear door with a window for emptying.
  • Robust frameAll ZDT frames are made of high quality steel, adapted to increased stress in the agricultural environment.
  • Tipping body

    The easiest and most common principle of unloading loads. The superstructures are tipping into three ways or just backwards.

  • Lower hitchAll NS trailers are designed with the lower hitch drawbar, with coupler selection between K80 and Eye 50mm.
  • SpeedVehicles can be hanged and used at standard speeds of 25 km/h, NS8, NS13 and MEGA33 EASY at a speed of 40 km/h.
